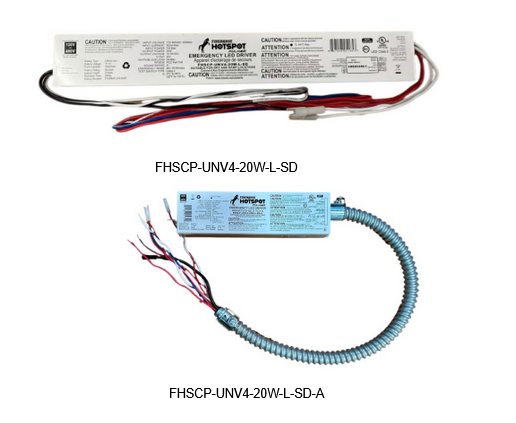

FHSCP-UNV4-20W-L-SD Fulham HotSpot Constant Power Emergency LED Driver - 20W 120-480V Self-Diagnostic

(No reviews yet) Write a Review
SKU:
BS50-FHSCP-UNV4-20W-L-SD-x
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • FHSCP-UNV4-20W-L-SD Fulham HotSpot Constant Power Emergency LED Driver - 20W 120-480V Self-Diagnostic
  • FHSCP-UNV4-20W-L-SD Fulham HotSpot - Specifications
  • FHSCP-UNV4-20W-L-SD Fulham HotSpot - Wiring
  • FHSCP-UNV4-20W-L-SD Fulham HotSpot - Wiring
  • FHSCP-UNV4-20W-L-SD-A Fulham HotSpot - Wiring
  • FHSCP-UNV4-20W-L-SD Fulham HotSpot - Model Breakdown
$99.95 - $107.95

Description


FULHAM HotSpot LED Emergency Lighting LED Driver, 20W Constant Power Output, High Voltage 120-480V Input, Output Voltage 15-55V, Output Current 1333mA Max, Integrated Battery, CA Title 20 Compliant, Rated IP20, Self Diagnostic (-SD), Conduit (-A) optional

Fulham HotSpot 20W Emergency LED Driver

Recommended applications include troffers, strips, canopies, wall packs, vapor-tight fixtures and more.

Features

  • cULus classified for field installation
  • Powers emergency lighting for 90 minutes
  • IP20, Dry/Damp Rated
  • Backed by a five-year warranty
  • Operation 24 hour recharge time
  • CA Title 20 Compliant
  • Class 2
  • Compatible Battery Type: Lithium-ion
  • Test Switch Indicator: Red Light
  • Single Channel Output
Hotspot Constant Power Emergency Drivers
Model Output Power (W) Connection Output Voltage Dimensions (LxWxH)
FHSCP-UNV-4W-L 4 Wire Leads 12-55VDC 5.34" x 1.69" x 1.01"
FHSCP-UNV-8W-L-SD 8 Wire Leads 15-55VDC 8.74" x 2.05" x 1.08"
FHSCP-UNV-8W-S-SD 8 Terminal Connector 15-55VDC 15.9" x 1.18" x 1.07"
FHSCP-UNV-10W-BLS-SD 10 Bottom-Exit-Studs 15-55VDC 5" x 3.74" x 1.38"
FHSCP-UNV-10W-C-SD 10 Terminal Connector 15-55VDC 5" x 3.74" x 1.18"
FHSCP-UNV-10W-L-SD 10 Wire Leads 15-55VDC 9.45" x 2.05" x 1.34"
FHSCP-UNV-12W-L-SD 12 Wire Leads 12-55VDC 12.50" x 1.63" x 1.0"
FHSCP-UNV-16W-L-SD-HV 16 Wire Leads 50-300VDC 9.45" x 2.05" x 1.3"
View AllClose

Videos

View AllClose

Additional Information

Our Part No:
BS50-FHSCP-UNV4-20W-L-SD-x
Mfr Part #:
FHSCP-UNV4-20W-L-SD, FHSCP-UNV4-20W-L-SD-A
Fixture Type:
Emergency
Input Voltage:
120-480V (High Voltage)
Max Output Power:
20W
Max Output Current:
1333mA
Max Output Voltage:
55V
Lumens:
NA
Warranty:
Manufacturer's
Lamp:
LED
Location Rating:
Dry/Damp
Dimensions:
See PDF Link Provided
Product Data Sheet:
See PDF Link Provided
Features:
Option with or without Conduit
CA Title 20 Compliant:
Yes
Case Size:
10
