Description
Mean Well Constant Current + Constant Voltage LED Driver, 320W Max Power Output, 120-277V Input, 49-58VDC Output Voltage, 3000-6000mA Output Current, IP65 Rated

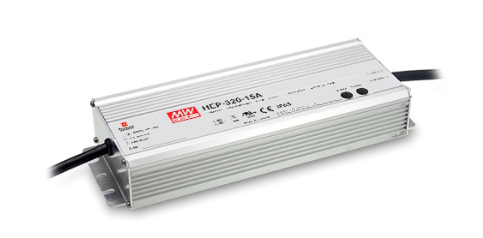

Mean Well 320W CC+CV LED Driver
HEP-320 series is a 320W AC/DC LED driver featuring the adjustable constant voltage and constant-current output for Harsh Environments. This series is able to work in either Constant Current mode (a direct drive way) or Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.
HEP-320-54A Specifications:
- A version - Standard IP65, Adjustable Voltage and Current Output via internal potentiometer.
- Total Max Output Power: 320 Watts
- Input Voltage: 85-264VAC (277VAC operational)
- IP rating: IP65 Damp/Dry/Wet for Indoor and Outdoor application. IP68 model is HEP-320-54
- Robust aluminum housing fully potted with heat-conducted silicone.
- See Specification sheet for details
Spec Sheets
Additional Information
Our Part No.: |
BSF-HEP-320-54A |
Manufacturer Part No.: |
HEP-320-54A |
Brand: |
Mean Well |
Fixture Type: |
LED |
Driver Type: |
Constant-Current + Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
320W |
Max Output Current: |
6000mA |
Max Output Voltage: |
58V |
Dimming: |
Non- Dimming |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
9.9"(L) x 3.5"(W) x 1.7"(H) |
Features: |
Harsh Environment Rated IP65 |
Warranty: |
Manufacturer's |
