Description

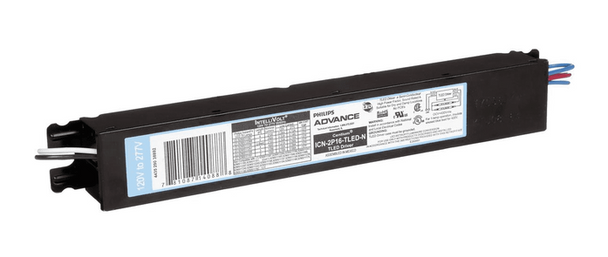

Advance Centium InstantFit TLED Driver, 45W Max Power Output, 120V-277V Input, Fixed Output, Operates InstantFit T8 one or two 2-4 ft. Tubes/U-bend Lamps, "EL" Enhanced Light Output
Advance Centium TLED Driver for 1-2 InstantFit Lamps - Enhanced Light Output
TLED (Tubular LED) InstantFit Type-C lamps are created by pairing InstantFit Type-A lamps with dedicated TLED drivers.
Review Specification Sheets provided for TLED Lamp and Driver compatibility
Spec SheetsAdditional Information
Our Part No.: |
BS42-ADV-ICN-2P16-TLED-EL-N |
Manufacturer Part No.: |
ICN-2P16-TLED-EL-N |
Manufacturer Material Code: |
913701267102 |
Brand: |
Advance Centium |
Fixture Type: |
TLED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
45W |
Dimming: |
Non Dimming |
Product Data Sheet: |
See PDF Link Provided |
Dimensions: |
9.5" (L) x 1.3"(W) x 1.0" (H), 8.89" MC |
Features: |
EL = Enhanced Light Output, 16W Max/Lamp |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
