Description
IOTA Constant Power Emergency LED Driver for Non-Class 2 LEDs, 20W Constant Power Output, Universal 120-277VAC Input, Self-Diagnostic, 90 minute emergency operation, High 55-200VDC Voltage Output, 100-363mA Current Output, CA Title 20 Compliant

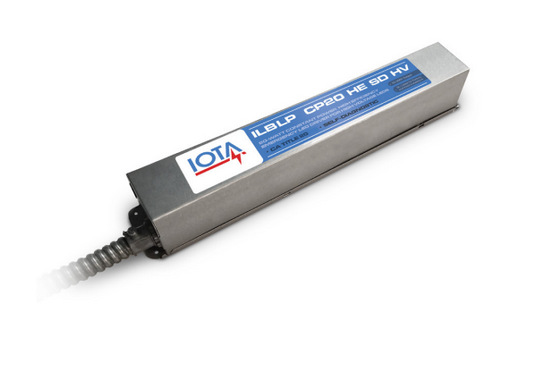

IOTA 20W High Efficiency Emergency LED Driver
The IOTA ILBLP CP20 HE SD HV S is a UL Listed emergency LED driver for field and factory installation that allows a fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation with single flex conduit
- Auto-adjusting 55-200 VDC output range accommodates a wide range of Non-Class 2 forward voltage design
- Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
- Monthly and annual testing self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators
- 20W emergency output is ideal for elevated mounting heights and high-bay fixtures
- High Efficiency Performance meets CEC energy efficiency standards for small battery chargers
- Lithium Battery technology with no heavy metals
Spec Sheets
Additional Information
Our Part No: |
BS13-ILBLP-CP20-HE-SD-HV-S |
Mfr Part #: |
ILBLP CP20 HE SD HV S |
Manufacturer Material Code: |
*26093L |
Fixture Type: |
Emergency |
Driver Type: |
Constant-Power |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
20W |
Max Output Current: |
363mA |
Max Output Voltage: |
200V |
Dimming: |
No |
Dimensions: |
15.7" (L) x 2.2" (W) x 2.05" (H) |
Features: |
Single Flex Conduit |
UL Class: |
Non-Class 2 LEDs |
Location Rating: |
Dry/Damp, Plenum |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
5 |
