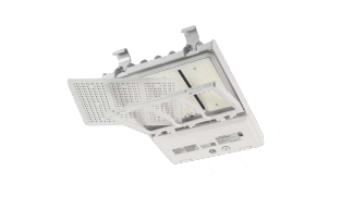

Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Series 2 White-Housing

(No reviews yet) Write a Review
SKU:
KT-ALEDxxxPSHV-x2-OSA-NM-8CSB-VDIM-W
MPN:
KT-ALEDXXXPSHV-X2-OSA-NM-8CSB-VDIM-W
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - White-Housing
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Specifications
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Wiring
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Dimensions
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Pole Mount Guide
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Lighting Patterns
  • Keystone XFiT OpticSwap PowerSelect Area LED Light Fixture - Lens Replacement Guide
  • Keystone XFiT OpticSwap PowerSelect High Voltage Area LED Light Fixture - Product SKU guide
$359.95 - $573.95

Description


LED XFiT OpticSwap Area Light Fixtures, Series 2, 70W to 290W / 9310 to 42770 Lumen, 277-480V Input, White Housing, 2 Glass Lens, Option 3000K/4000K/5000K Color Temperature

Keystone XFiT PowerSelect ColorSelect High Voltage Area Light Fixtures Series-2

Features

  • Keystone Power Select technology (See Performance Specifications for details)
  • Keystone Color Select technology (3000/4000/5000K)
  • Innovative optic swap capability under door frame and latch design for quick, tool-free lens change
  • Two lenses in the box: Type III installed, Type V included
  • Type II and Type IV lenses sold separately. See below for details
  • Heavy-duty, die-cast aluminum housing with ample heat sinking
  • Low-profile design delivers high-performance illumination and improves application site aesthetics
  • True U0 design for dark sky friendly performance that eliminates undesirable sky glow
  • Integrated NEMA/ANSI C126.10 3-pin twist-lock receptacle with shorting cap. Compatible with KT-TLP-UV-3PN, 120-277V photocell (See Accessories section for details).
  • Five contractor-friendly mounting options available: slipfitter, trunnion, adjustable pole mount, fixed pole mount, and wall adaptor. Sold separately (see Accessories for details)
  • Keystone 0-10V dimming driver
  • Ambient operating temperature: −40°C/−40°F to 50°C/122ËšF
  • UL Certified; IP65 rated
  • Power factor: > 0.95
  • THD: < 20%
  • LED chip lifetime: L70 > 100,000 hrs @ 25C°/77°F ambient fixture temperature
  • Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
View AllClose

Additional Information

Our Part No:
KT-ALEDxxxPSHV-x2-OSA-NM-8CSB-VDIM-W
Mfr Part #:
KT-ALEDxxxPSHV-x2-OSA-NM-8CSB-VDIM-W
Manufacturer Material Code:
FNJ-57, OVD-72
Brand:
Keystone
Lamp:
LED Area Light
Wattage:
70W, 100W, 140W, 185W, 210W, 290W
Lumens:
9310, 9880, 10740, 12720, 13530, 14750, 17950, 19020, 20780, 22970, 24440, 27970, 27300, 28980, 31710, 36320, 38700, 42770
Color Temp:
3000K/4000K/5000K field select
Voltage:
277-480V
Dimming:
Yes
Finish:
White
Features:
Accessories (see Links)
Product Data Sheet:
See PDF Links Provided
Dimensions:
See PDF Provided
CRI:
80+
HID Equivalent:
400W, 1000W
Case Size:
1
Warranty:
Manufacturer's
