Description

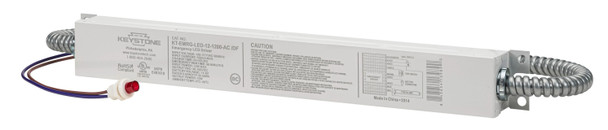

Keystone Constant Wattage Emergency Back-up LED Driver, 12W Max Power Output, 1200 Lumen, Optimized for DirectDrive (Type B) Single Ended LED Tubes Dual Flex, 40-100Vdc Output Voltage, 200-750mA Output Current (load dependent), Dual-Flex Conduit
Keystone 12W Constant Power Emergency LED Driver - Conduit
LED Emergency Back-Up Driver | Dual Flex output | 120 - 277V input
Features
- LED Emergency Backup
- 12W - 1200 Lumen Constant Power Design
- 120-277V Input
- 90 minute operation in emergency mode
- Dual Flex Cable Design with 1/2" Knock-outs
- Installs on Primary Side of AC Powered LED load
- Optimized for Type B Compact Lamps and LED downlight fixtures
- CEC Complaint
- 2-in-1 Test Switch and indicator light
- Includes Instruction Sheet
Spec Sheets
Additional Information
Our Part No.: |
KT-MPM-43 |
Manufacturer Part No.: |
KT-EMRG-LED-12-1200-AC /DF |
Manufacturer Material Code: |
MPM-43 |
Brand: |
Keystone |
Fixture Type: |
LED |
Driver Type: |
Constant-Power |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
12W |
Max Output Current: |
750mA |
Max Output Voltage: |
100V |
Output Voltage Range: |
40-100V |
Dimming: |
Non-Dimming |
Product Data Sheet: |
See PDF Link Provided |
Dimensions: |
14.88" L x 1.73" W x 1.42" H |
Features: |
Dual Flex Conduit |
Warranty: |
Manufacturer's |
Case Size: |
10 |
