Description

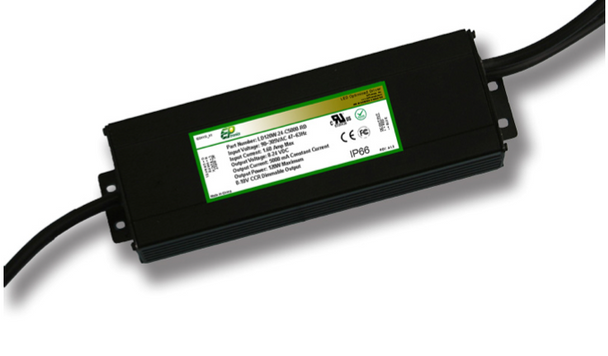

LD120W-43-C2800-RD EPtronics 120W Constant Current LED Driver, Universal input 120-277V, 2800mA current output, 15-43Vdc output, 0-10V Analog Dimming.
 |
LD120W-43-C2800-RD Specs |
EPtronics 120W 2800mA Constant Current Power Supply- Dimming
- Total Power: 120 Watts
- Input Voltage: 90-305 VAC
- Dimming: 0-10V Analog
- IP66 - Water resistant and Dust Proof, NEMA4 for Dry, Damp, Wet Locations
- Class: HL
- Black Plastic Case, Fully Encapsulated
Additional Information
Our Part No.: |
BS14-LD120W-43-C2800-RD |
Manufacturer Part No.: |
LD120W-43-C2800-RD |
Brand: |
EPtronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
120W |
Max Output Current: |
2800mA |
Output Current Factory Setting: |
2800mA |
Max Output Voltage: |
43V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp |
Dimensions: |
7.2" L x 2.33" W x 1.47" H |
Features: |
Minimum Starting Temp: -30ºC |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
