Description
Thomas Research Constant Current LED Driver, 25W Max Power Output, Universal 120-277V Input, Fixed 500mA Output Current, 20-40Vdc Output Voltage, Analog 0-10V Dimming

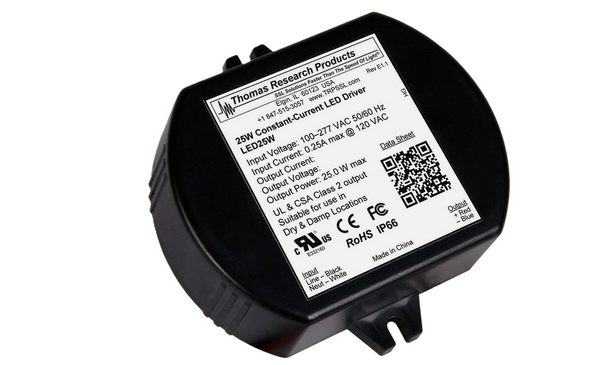

Thomas Research 25W 500mA Constant Current LED Power Supply
- Total Power: 25 Watts
- Fixed Output Current: 500mA
- Input Voltage: 100-277 VAC
- UL Dry & Damp Location Rated
- IP66
- High Efficiency
- High Power Factor
- Analog Dimming (0-10V)
- Black Magic Thermal Advantage™ Plastic Housing
Spec Sheets
Additional Information
Our Part No.: |
BS14-LED25W-40-C0500-D |
Manufacturer Part No.: |
LED25W-40-C0500-D |
Manufacturer Material Code: |
93057056 |
Brand: |
Thomas Research - Current |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
25W |
Max Output Current: |
500mA |
Output Current Factory Setting: |
500mA |
Max Output Voltage: |
40V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp |
Dimensions: |
3.07" L x 3.15" W x 1.02" H |
UL Class: |
Class 2 |
Features: |
Minimum Starting Temp: -40ºC |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
