Description
Advance Xitanium Constant Current LED Driver, 150W Max Power Output, Universal 120-277V Input, Fixed 1500mA Output Current, 30-100V Output Voltage, 0-10V analog dimming

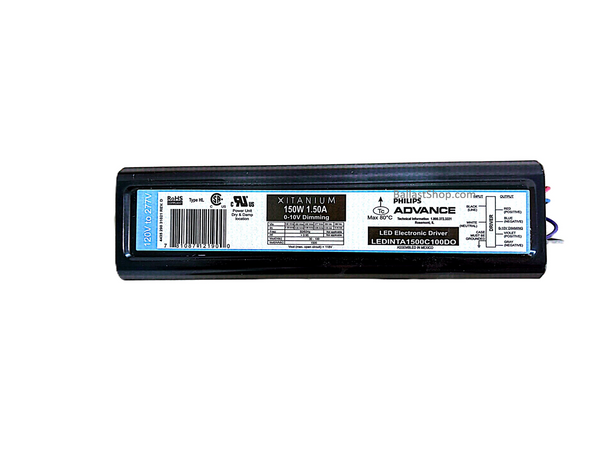

Advance Xitanium 150W 1500mA LED Driver
XITANIUM 150W 1.5A 100V 0-10V INTELIVOLT
- Total Max Output Power: 150W
- Input Voltage: 120 to 277V
- Output Current: 1.5 A
- Total Output Voltage: 30-100V
- Dimming Range: 0-10V analog dimming 10-100%
- Isolation: Class 2
- UL Damp and Dry
- Operating Temperature: -40°~ 90°C
Spec Sheets
Additional Information
Our Part No.: |
BSF-LEDINTA1500C100DO |
Manufacturer Part No.: |
LEDINTA1500C100DO |
Manufacturer Material Code: |
929000707902 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
150W |
Max Output Current: |
1500mA |
Output Current Factory Setting: |
1500mA |
Max Output Voltage: |
100V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
9.45"(L) x 2.35"(W) x 1.57"(H) Mounting Center 9.0" |
UL Class: |
Class 2 |
Features: |
Min. Starting Temperature: -40ºC |
Warranty: |
Manufacturer's 5 Year |
Alternative Keywords: |
Philips Xitanium 150W 1.5A 0-10 GL-F sXt |
Case Size: |
10 |
