Description
Mean Well Constant Current LED Driver, 60W Max Power Output, Universal 120-277V Input, Fixed 1400mA Output Current, 9-42V Output, Feet Mount

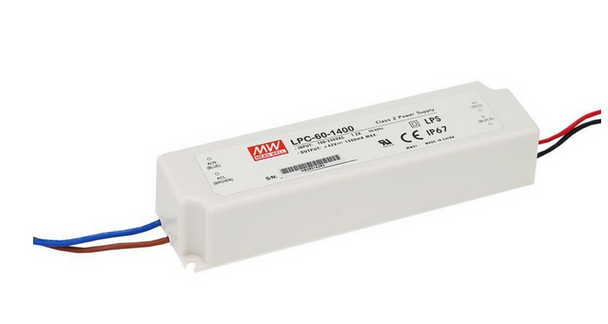

Mean Well 60W 1400mA Constant Current LED Power Supply
Features
- Max Power 60W
- Constant Current 1400mA Output
- Output Voltage Range 9-42Vdc
- Universal AC Voltage input
- Epoxy encapsulated with IP67 level for harsh conditions
- Withstand 300VAC surge input for 5 seconds
- Short circuit, over load, over voltage protections
- Fully isolated plastic case
- Cooling by free air convection -30°C to +75°C operation
- Class 2
Spec SheetsAdditional Information
Our Part No.: |
BSF-LPC-60-1400 |
Manufacturer Part No.: |
LPC-60-1400 |
Brand: |
Mean Well |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
60W |
Max Output Current: |
1400mA |
Max Output Voltage: |
42V |
Dimming: |
Non Dimming |
Location Rating: |
Dry/Damp |
Dimensions: |
6.40 " (L) x 1.67" (W) x 1.26" (H) |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
Alternative Keywords: |
HB72065818, LPC601400 |
