Description
Mean Well Constant Voltage/Current Single Output Power Supplies

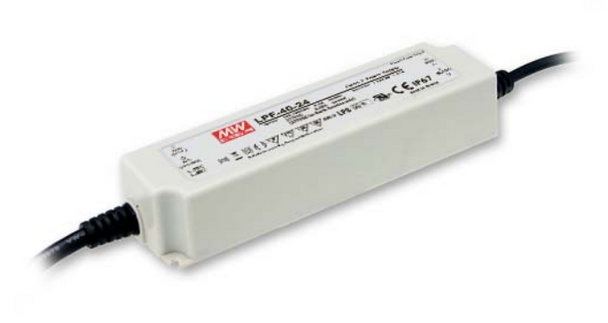

Mean Well’s LPF LED Drivers have two output modes: Constant Voltage and Constant Current. They run off line voltage (90-264) and are available in 16, 25, 40, 60 and 90 Watt models that act as a switching device to turn AC input voltage into either a single-output DC voltage between 12 and 54V or a single-output current of up to 5000mA. This model operates at 40W/12V/3340mA. Applications include LED-based decorative, architectural lighting, stage/theater lighting, LED electronic displays. See Related Products for other models
Features
- Constant Voltage/Current modes power supply
- Universal AC Voltage input
- Epoxy encapsulated with IP67 level for harsh conditions
- Withstand 300VAC surge input for 5 seconds
- Short circuit, over load, over voltage protections
- Fully isolated plastic case
- Cooling by free air convection -30°C to +75°C operation
- UL1310 Class 2 power unit, passes LPS
Additional Information
Our Part No.: |
BSFM-LPF-40-12 |
Manufacturer Part No.: |
LPF-40-12 |
Brand: |
Mean Well |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
40W |
Max Output Current: |
3340mA |
Max Output Voltage: |
12V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
|
Location Rating: |
Dry/Damp |
Dimensions: |
6.40(L) x 1.67"(W) x 1.26"(H)" |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
