Description
INVENTRONICS LED Driver Constant Current, 12W Max Power Output, Universal 12-277V Input, Fixed Output Current 500mA, 12-24Vdc Output, Non-Dimmable, IP20 Rated
DISCONTINUED BY MANUFACTURER - Shipping Manufacturer's Replacement that is exact same plus an optional dimming function. Please review and order here: LUC-012S050DSP

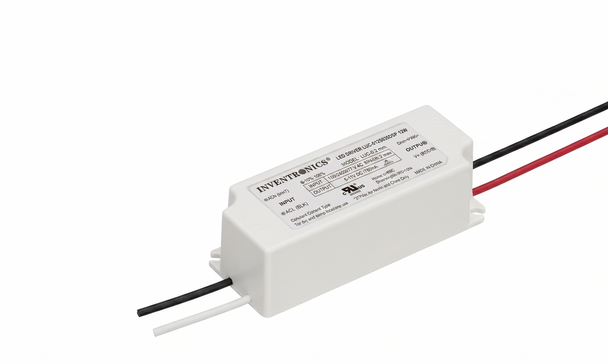

INVENTRONICS LED Drivers 12W 500mA Constant Current
LUC-012S070SSP is part of the Inventronics LUC Series 12W Indoor Constant Current LED Driver Module, with an Constant Current of 0.5A
- Total Power: 12 Watts
- Output Current: 500mA
- Input Voltage: 90-305 VAC
- IP20 indoor
- Class 2
- High Efficiency
- Operating temperature range: -20°C to 70°C
- Polycarbonate Housing
- All-Around Protection: OVP, SCP and Open Lamp Protection
Spec Sheets
Additional Information
Our Part No.: |
BSF-LUC-012S050SSP |
Manufacturer Part No.: |
LUC-012S050SSP |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
12W |
Max Output Current: |
500mA |
Output Current Factory Setting: |
500mA |
Max Output Voltage: |
24V |
Dimming: |
Non Dimming |
Product Data Sheet: |
|
Location Rating: |
Dry |
Dimensions: |
4.12" L ×1.65" W × 1.20" H |
UL Class: |
Class 2 |
Features: |
Short circuit and overload protection + Over temperature protection |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
