Description
Optotronic Constant Current Programmable LED Driver with D4i Technology, 30W Max Power Output, Universal 120-277V Input, Output Current Programmable 150-1050mA (factory default 700mA), Output Voltage 10-56VDC, DALI-2/D4i Dimming Interface 1%-100%

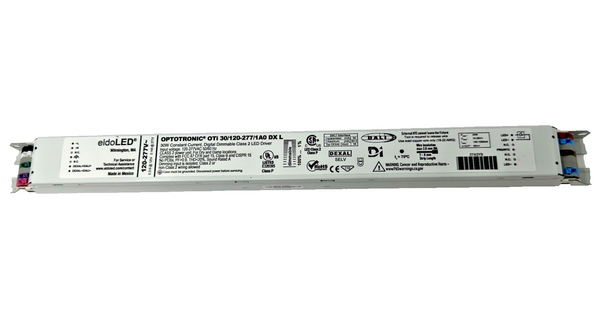

eldoLED Optotronic 30W 700mA D4i Programmable Constant Current LED Driver
- Max Power 30W
- Input Voltage: 120-277 VAC
- Output Voltage: 10-56Vdc
- Output Current: 150-1050mA programmable in 1mA increments, FACTORY SET TO 700mA
- Class 2
- Dry and Damp Rated
- DALI/D4i control dimmable 1%-100%
- D4i and DALI Certified, DEXAL
Note: Osram Optotronic brand is now part of the Acuity eldoLED Optotronic family.
Spec SheetsAdditional Information
Our Part No.: |
BSF-OPT-2743Y8 |
Manufacturer Part No.: |
OTi30/120-277/1A0 DX L |
Manufacturer Material Code: |
*2743Y8 |
Brand: |
Acuity eldoLED Optotronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
30W |
Max Output Current: |
1050mA |
Output Current Factory Setting: |
700mA |
Output Current Programmable Range: |
150-1050mA |
Max Output Voltage: |
56V |
Output Voltage Range: |
10-56V |
Dimming: |
D4i, DEXAL, DALI-2 |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
14.2" L x 1.2" W x 1.0" H |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
