Description
OPTOTRONIC Constant Current LED Driver, 55W Max Power Output, Universal120-277V Input, Programmable Fixed Output Current 700-2000mA (factory setting 1000mA), Output 8-55VDC, 0-10V Analog Dimming 1-100% Range, J-style case with bottom exit PEM studs

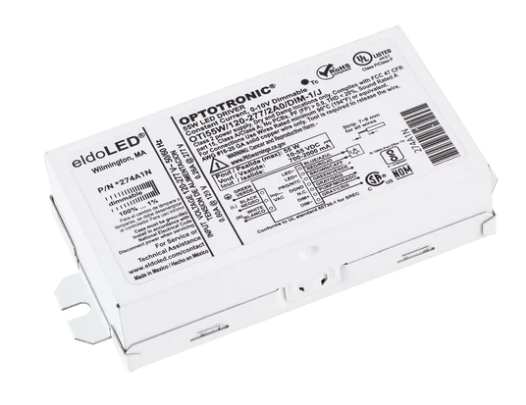

Optotronic 55W 1000mA Programmable Constant Current LED Driver - Studs
- Up to 55W Power Output
- Input Voltage: 120-277 VAC
- Output Voltage: 10-55V DC
- Output Current: 700-2000mA programmable, FACTORY SET TO 1000mA
- 0-10V Analog Dimming 1%-100%
- J-style: Bottom exit quick connect wiring, 2" PEM Studs
Note: Osram Optotronic brand in now part of the Acuity eldoLED Optotronic family.
Spec SheetsAdditional Information
Our Part No.: |
BSF-OPT-57356 |
Manufacturer Part No.: |
OTi 55W UNV 2A0 1DIM J-HOUSING J20 |
Manufacturer Material Code: |
57356/*274A1N |
Brand: |
Acuity eldoLED Optotronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
55W |
Max Output Current: |
2000mA |
Output Current Factory Setting: |
1000mA |
Output Current Programmable Range: |
700-2000mA |
Max Output Voltage: |
55V |
Output Voltage Range: |
10-55V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
5.0" L x 2.4" W x 1.2" H Mounting Center 2" Studs |
UL Class: |
Class 2 |
Features: |
J-style housing with studs, 1-100% Dimming |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
