Description
Thomas Research Constant Current LED Driver, 150W Max Power Output, Universal 120-277V Input, Fixed 4200mA Output Current, 11-35V Output Voltage, Analog 0-10V Dimmable
DISCONTINUED by Manufacturer - please review candidate replacement and enter required Output Current setting here: Candidate Replacement

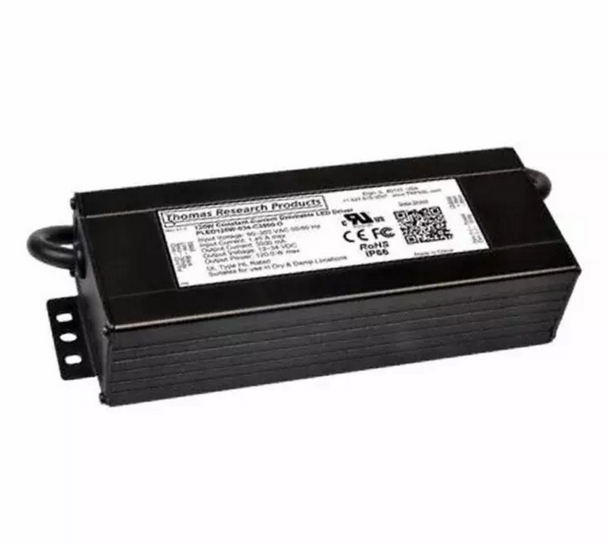

Thomas Research Products 150W 4200mA Constant Current Power Supply
- Total Power: 150 Watts
- Input Voltage: 100-277 VAC
- IP66, NEMA 6
- High Power Factor
- Black Magic Thermal Advantage Aluminum Housing
- Dimmable
Spec Sheets
Additional Information
Our Part No.: |
BS14-PLED150W-035-C4200-D |
Manufacturer Part No.: |
PLED150W-035-C4200-D |
Manufacturer Material Code: |
93057218 |
Brand: |
Thomas Research - Current |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
150W |
Max Output Current: |
4200mA |
Output Current Factory Setting: |
4200mA |
Max Output Voltage: |
35V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp |
Dimensions: |
7.60" L x 2.33" W x 1.47" H |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
