Description
Lithonia POWER SENTRY Emergency LED Driver, 10W Constant Power Output, Universal 120-277V Input, Field Select Output Voltage 180VDC (80ma) or 250VDC (50mA), Max Output Current 80mA, Low Profile Case
DISCONTINUED BY MANUFACTURER. Please review manufacturer's recommended candidate replacement and order here: Manufacturer's Suggested Replacement

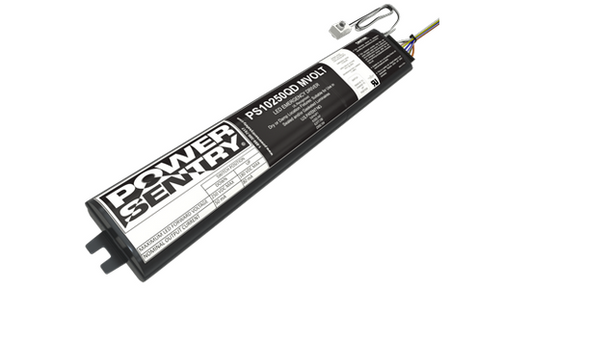

Power Sentry 10W 180V/250V Emergency Lighting LED Driver
Compact size with low profile fits in a variety of LED fixtures: troffers, volumetric recessed, industrial, commercial and LED strip modules
Features
- Constant Output Power: 10 watts max
- Universal Input Voltage of 120V to 277 VAC
- Output: 80mA for up to 180 VDC or 50mA for up to 250 VDC option set during installation via switch on unit
- Illumination time of 90 minutes with any brand of Class 2 luminaire
Spec SheetsAdditional Information
Our Part No: |
BSF-PS10250 |
Mfr Part #: |
PS1050 |
Manufacturer Material Code: |
NA |
Fixture Type: |
Emergency |
Features: |
Quick-Disconnect connector system |
Max Output Power: |
10W |
Max Output Current: |
80mA, 50mA |
Max Output Voltage: |
250V, 180V |
Input Voltage: |
120-277V (Universal) |
Dimensions: |
13.3” (L) x 2.25” (W) x 1.18” (H) |
CA Title 20 Compliant: |
Yes |
Product Data Sheet: |
See PDF Link Provided |
Installation Instructions: |
See PDF Link Provided |
Case Size: |
10 |
Warranty: |
Manufacturer's |
