Description
Mean Well Constant Voltage LED Driver, 120W Max Power Output, Universal 120-277V Input, Fixed 12Vdc, up to 10000mA Output Current, 0-100% Dimming 3-in-1 (0-10V, PWM, Resistance)

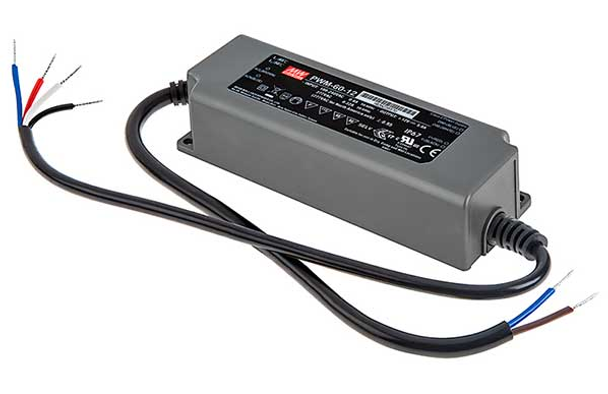

Mean Well 120W 12V Constant Voltage Output Power Supplies
Mean Well’s PWM Constant Voltage LED Drivers are capable of three types of dimming: 0-10V, PWM, and resistance. They run off line voltage (90-305) and are available in 40, 60, 90 and 120 Watt models that act as a switching device to turn AC input voltage into a single-output DC voltage between 5 and 48V. This model operates at 120W/24V. Applications include LED-based decorative, architectural lighting, stage/theater lighting, LED electronic displays. See Related Products for other models
Features
- Power Output: 120W
- Constant Voltage Output; 12VDC
- 3-in-1 Dimming: 0-10V, PWM, Resistance
- Universal AC Voltage input 120-277V
- Epoxy encapsulated with IP67 level for harsh conditions
- Fully isolated plastic case
- Cooling by free air convection 40°C to 85°C operation
- UL1310 Class 2 power unit, passes LPS
Spec Sheets
Additional Information
Our Part No.: |
BSFM-PWM-120-12 |
Manufacturer Part No.: |
PWM-120-12 |
Brand: |
Mean Well |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
120W |
Max Output Current: |
10000mA |
Max Output Voltage: |
12V |
Dimming: |
Analog (0-10V), PWM, Resistance |
Location Rating: |
Dry/Damp |
Dimensions: |
7.52"(L) x 2.48"(W) x 1.48"(H) |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
