Description
MEAN WELL Single Output Power Supplies, 40-120W and 12-48V DC output, IP67 Wet Location rated, 0-10V Dimming range 0-100%

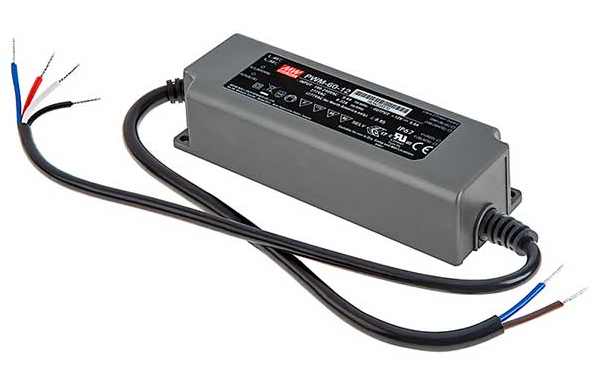

Mean Well Constant Voltage Single Output Power Supplies
Mean Well’s PWM Constant Voltage LED Drivers are capable of three types of dimming: 0-10V, PWM, and resistance. They run off line voltage (90-305) and are available in 40, 60, 90 and 120 Watt models that act as a switching device to turn AC input voltage into a single-output DC voltage between 5 and 48V. Check individual product specs for details. Applications include LED-based decorative, architectural lighting, stage/theater lighting, LED electronic displays.
Features
- Constant Voltage mode power supply
- 3-in-1 Dimming: 0-10V, PWM, Resistance
- Universal AC Voltage input
- Epoxy encapsulated with IP67 level for harsh conditions
- Fully isolated plastic case
- Cooling by free air convection 40°C to 85°C operation
- UL1310 Class 2 power unit, passes LPS
Additional Information
Our Part No.: |
BSF-PWM-X-X |
Manufacturer Part No.: |
PWM |
Brand: |
Mean Well |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
40W, 60W, 90W, 120W |
Max Output Voltage: |
12V, 24V, 36V, 48V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp |
Dimensions: |
5.9" L x 2.1" W x 1.4" H |
UL Class: |
Class 2 |
Features: |
Dimming Range 0-100% |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
