Description
Fulham Pony Field Select LED Driver, Up to 16.8W Power Output, Universal 120V-277V Input, Switch Select: Fixed Output Current 250/300/350/400mA, Output 30-42V, Dimmable 0-10V Analog 10%-100%

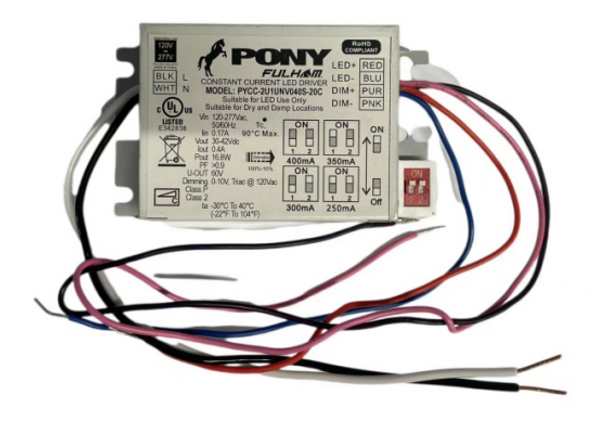

Fulham Pony LED Driver 20W Selectable Constant Current
- Total Max Output Power: 16.8W (20W nominal)
- Select Fixed Output Current (Lumen): 250ma or 300mA (Low) or 350mA (Med) or 400mA (High)
- Output Voltage Range: 30-42VDC
- IP20 Rated
- Dimmable 10%-100%, 0-10V Analog
- Class 2 Wiring
- Compact form factor
Click on Link Below to View Field-Select Current Models:
| Max Output | Output Current | Output Voltage | |
| Model Number | Power (W) | Selectable (mA) | Range (Vdc) |
| PYCC-1M1UNV040S-20L | 20 | 300 / 350 / 400 | 30-42 |
| PYCC-1M1UNV055S-30L | 30 | 450 / 500 / 550 | 30-42 |
| PYCC-1M1UNV070S-30L | 30 | 600 / 650 / 700 | 30-42 |
| PYCC-1M1UNV085S-40L | 40 | 750 / 800 / 850 | 30-42 |
| PYCC-1M1UNV100S-40L | 40 | 900 / 950 / 1000 | 30-40 |
| PYCC-1M1UNV115S-50L | 50 | 1050 / 1100 / 1150 | 30-42 |
| PYCC-1M1UNV130S-60L | 60 | 1200 / 1250 / 1300 | 30-42 |
Spec Sheets
Additional Information
Our Part No.: |
BS50-FUL-PYCC-2U1UNV040S-20C |
Manufacturer Part No.: |
PYCC-2U1UNV040S-20C |
Brand: |
Fulham Pony |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Field-Select |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
16.8W |
Max Output Current: |
400mA |
Output Current Factory Setting: |
250mA, 300mA, 350mA, 400mA |
Max Output Voltage: |
42V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
IP20 |
Dimensions: |
3.4"(L) x 1.9"(W) x 1.1"(H) |
UL Class: |
Class 2 |
Features: |
Field Adjustable Current (Lumen) Outpute |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
