Description
Fulham Pony Field Select LED Driver, Up to 40W Power Output, Universal 120V-277V Input, Selectable Fixed Output Current 850/900/950/1000mA, Output 30-40V, Dimmable 0-10V Analog

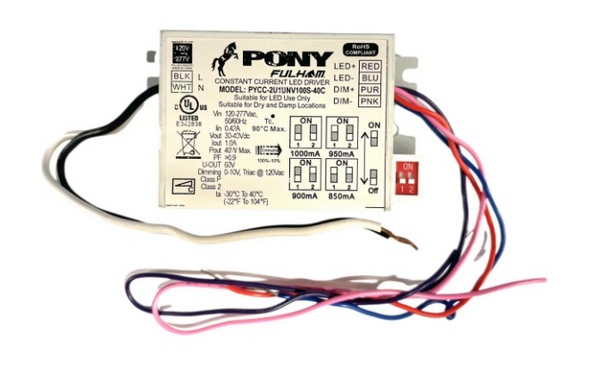

Fulham Pony 40W Selectable Constant Current LED Driver
- Total Max Output Power: 40W
- Select Fixed Output Current (Lumen): 850ma or 900mA (Low) or 950mA (Med) or 1000mA (High)
- Output Voltage Range: 30-40VDC
- IP20 Rated
- Dimmable 10%-100%, 0-10V Analog & Phase@120V
- Class 2 Wiring
- Compact form factor
Click on Link Below to View Compact Field-Select Current Models:
Spec Sheets
Additional Information
Our Part No.: |
BS50-FUL-PYCC-2U1UNV100S-40C |
Manufacturer Part No.: |
PYCC-2U1UNV100S-40C |
Brand: |
Fulham Pony |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Field-Select |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
40W |
Max Output Current: |
850mA, 900mA, 950mA, 1000mA |
Output Current Factory Setting: |
850mA, 900mA, 950mA, 1000mA |
Max Output Voltage: |
40V |
Dimming: |
Analog (0-10V), Phase |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
IP20 |
Dimensions: |
3.4"(L) x 1.9"(W) x 1.1"(H) |
UL Class: |
Class 2 |
Features: |
Field Adjustable Current (Lumen) Outpute |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
