Description

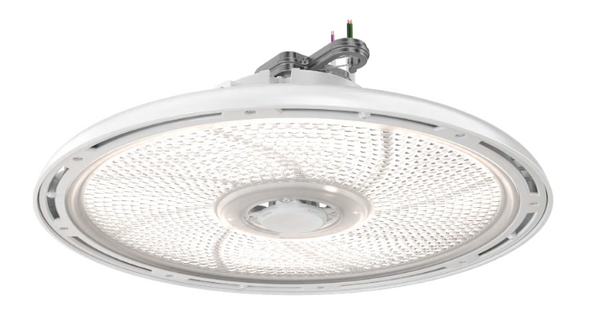

Lithonia REBL LED Round High Bay Luminaire, UVOLT 120-347V or XVOLT 277-480V Input, Field Select 12,000 to 55,000 Lumen and 3500K/4000K/5000K Color Temperature, Analog 0-10V Dimming 10%-100%, Ultra Low Glare
Lithonia REBL LED Round High Bay Fixtures
REBL is available in four distinct sizes with adjustable lumen outputs ranging from 12,000LM to an impressive 55,000LM plus field selectable color temperature options 3500K, 4000K, and 5000K
Features
- Lumen Package / Color Temperature (CCT) Options:
- 12,000/15,000/18,000 (ALO13) / 3500K/4000K/5000K (SWW3)
- 24,000/27,000/30,000 (ALO16) / 3500K/4000K/5000K (SWW3)
- 30,000/35,000/40,000 (ALO27) / 4000K/5000K (SWW9)
- 35,000/45,000/55,000 (ALO28) / 4000K/5000K (SWW9)
- Input voltage: UVOLT (120-347V) or XVOLT (277-480V)
- IP66 Rated, Wet and Dusty Location
- NEMA Type 4X
- Mounting: 3/4" Threaded Hub or Flip Hook Pendant Mount. Optional surface mount bracket.
- Cordset: 6' power cord and 6' dimming leads.
- IK10 Impact Rated Polycarbonate Lens - Avoids breakage from most impacts in sport facilities. Optional Polycarbonate Reflector.
- NSF2 - Non-glass lens for use in food packaging environments
Spec Sheets
Additional Information
Our Part No: |
BSF-LITH-REBL |
Mfr Part #: |
Based On Selection |
Manufacturer Material Code: |
Based On Selection |
Brand: |
Lithonia |
Lamp: |
LED Round High Bay |
Wattage: |
88W, 104W, 134W, 174W, 214W |
Lumens: |
12000, 15000, 18000, 24000, 27000, 30000, 35000, 40000, 45000, 50000 |
Color Temp: |
3500K, 4000K, 5000K |
Voltage: |
120-347V (UVOLT) |
Dimming: |
Analog (0-10V) |
Bulb Life: |
100,000 Hours |
Regulatory Qualifications: |
DLC Listed, IK10, UL Listed, NSF, NEMA 4X |
Warranty: |
Manufacturer's |
Product Data Sheet: |
See PDF Links Provided |
Dimensions: |
See Product Specification Sheet |
Case Size: |
2 |
