Description
Simon Quic Constant Current LED Driver with Field Selectable Output Current, 40W Max Power Output, Universal 120-277V Input, Switch Select 950mA/850mA/750mA Fixed Output Current, 30-42Vdc Output, Analog 0-10V Dimming

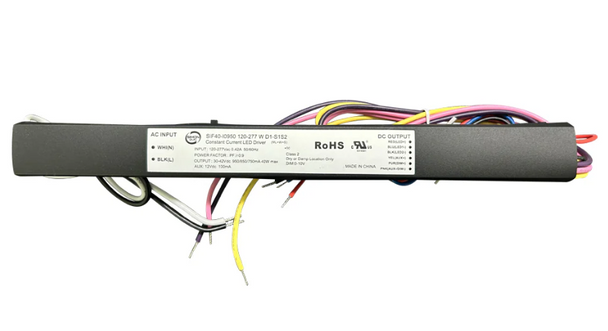

Simon Quic 40W Field-Select-Current LED Driver
SIF40-I0950/120-277/W/D1-S1S2 (ML+W+S) (950/850/750)
- Max Power Output: 40W
- Field Switch Select Fixed Output Current: 950mA 850mA 750mA
- Field Switch Select CCT
- Output Voltage: 30-42V
- Dimming function: Analog 0-10V
- Input Voltage: 120-277 VAC
- Auxiliary 12V 100mA
Spec SheetsAdditional Information
Our Part No.: |
BS75-SIF40-I0950/120-277/W/D1-S1S2 |
Manufacturer Part No.: |
SIF40-I0950 120-277 W D1-S1S2 |
Manufacturer Material Code: |
201.0425 |
Brand: |
Simon Quic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
40W |
Max Output Current: |
950mA, 850mA, 750mA |
Output Current Factory Setting: |
950mA, 850mA, 750mA |
Max Output Voltage: |
42V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp |
Dimensions: |
10.4" L x 0.9" W x 0.78" H |
UL Class: |
Class 2 |
Features: |
Field Select Current Output and CCT |
Warranty: |
Manufacturer's |
Case Size: |
10 |
Alternative Keywords: |
SIF40-I0950/120-277/W/D1-S1S2 |
