Description
Magnitude Lighting Mini Constant Voltage LED Driver, 60W Max Power Output, 120VAC Input, Fixed 12VDC Output, Max Current Output 5000mA, Phase Dimmable (ELV, CL, Caseta), Compact Size

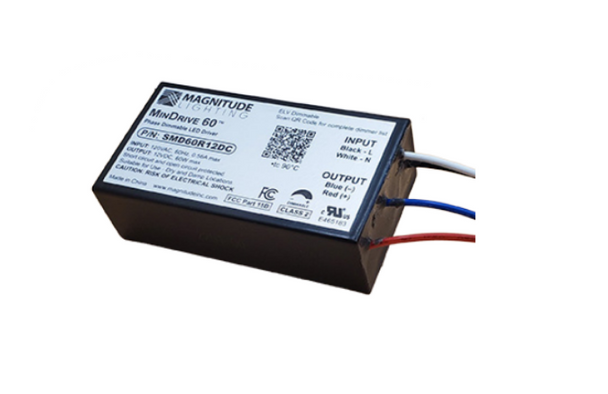

Magnitude Lighting 60W 12V Constant Voltage Mini LED Driver
Constant Voltage Drivers are typically used in outdoor fixtures and signs
These LED drivers provide a constant 12DC voltage output. The LED module, connected in parallel, is designed to run at a specified voltage and incorporates a current regulator to control the current through the LED. Constant Voltage drivers are ideal for sign applications because of their flexibility to connect a wide range of modules in parallel.
- Power Output 60W Max
- Fixed 12VDC Output
- Phase Dimmable with ELV, CL and Caseta (see pdf compatibility list provided). Operates without dimming.
- Meets FCC requirements for Consumer Usage
- Operating Temperature: -22°F to 104°F (-30°C to 40°C)
- UL Dry & Damp Protection Rated
- UL Recognized
- Class 2
- Low Minimum Load: 1W without dimmer, 5W with dimmer
- Size 2.9" L x 1.60" W x 0.9" H
- Fits in single-gang switch box
Spec SheetsAdditional Information
Our Part No: |
BSF-MAG-SMD60R12DC |
Mfr Part #: |
SMD60R12DC |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120V |
Max Output Power: |
60W |
Max Output Voltage: |
12V |
Max Output Current: |
5000mA |
Dimming: |
Dimmable |
Dimensions: |
2.9" (L) x 1.60" (W) x 0.9" (H) |
Product Data Sheet: |
See PDF Link Provided |
Features: |
Phase Dimmable with ELV, CL and Caseta |
UL Class: |
Class 2 |
Location Rating: |
Dry/Damp |
Alternative Keywords: |
No |
Warranty: |
Manufacturer's |
Case Size: |
25 |
