Description
Fulham ThoroLED Constant-Current Programmable LED Driver, 30W Max Output Power, Universal 120-277V Input Voltage, Programmable Fixed Output Current of 300-1400mA (factory setting 700mA), Output Voltage 12-56Vdc, 0-10V Analog Dimming

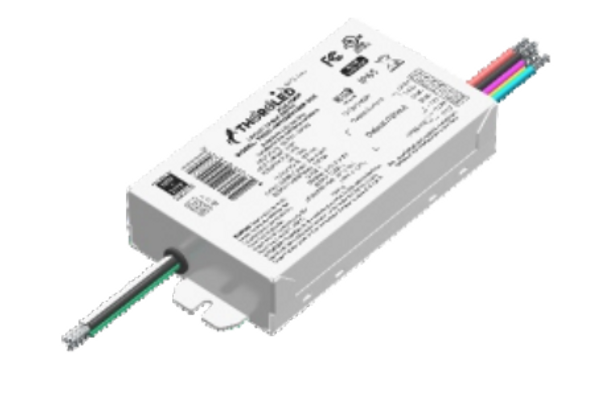

Fulham ThoroLED 30W Dimmable Constant-Current Programmable LED Driver
- Total Max Output Power: 30W
- Programmable Output Current: 300-1400mA, FACTORY DEFAULT SET TO 700mA
- IP65 Rated
- Dimming Capabilities: Analog (0-10V)
- Dim 1%-100% or 0%-100% (dim to dark)
- cULus listed, Class P
- Class 2
- Protections: OCP, OVP, Open Circuit, Short Circuit
- Auxiliary Output: 12V, 200mA
- Manufacturers Warranty of 5 Years
Spec Sheets
Additional Information
Our Part No.: |
BS50-THCC-1M1UNV140P-30C |
Manufacturer Part No.: |
THCC-1M1UNV140P-30C |
Brand: |
Fulham ThoroLED |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
30W |
Max Output Current: |
1400mA |
Output Current Factory Setting: |
700mA |
Max Output Voltage: |
56V |
Output Voltage Range: |
12-56V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
4.96" L x 2.41" W x 0.95"H |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
