Description

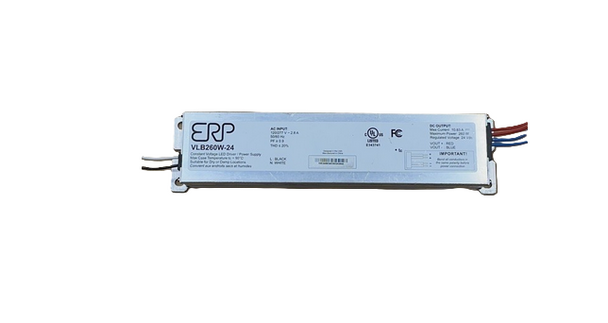

ERP Power VLB260W-24 Constant Voltage LED Driver, 260W power out, input voltage 120/277V, output constant voltage 24Vdc, current range 540-10,830mA, non-dimmable.
ERP Power 260W 24V Constant Voltage LED Power Supply
- Power 260W AC DC Converter
- Input Voltage: 120/277VAC, Output Voltage: 24Vdc
- Current Output: range of 0.54-10.83A
- UL Class P
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
- Very high power density of 10.2 W/in3
Spec Sheets
Additional Information
Our Part No.: |
ERP-VLB260W-24 |
Manufacturer Part No.: |
VLB260W-24 |
Brand: |
ERP Power |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
260W |
Max Output Current: |
10830mA |
Max Output Voltage: |
24V |
Dimming: |
Non Dimming |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
L 8.44/9.47 x W 2 x H 1.52 in. |
Features: |
IP66-rated case with silicone-based potting |
Warranty: |
Manufacturer's |
Case Size: |
10 |
