Description
Advance Xitanium LED Driver with SimpleSet, 95W Max Power Output, High Voltage 347-480V Input, Programmable Fixed Output Current 100-2750mA (factory default 2300mA), 20-54V Output, Analog 0-10V Dimming 5%-100%, F-can Housing

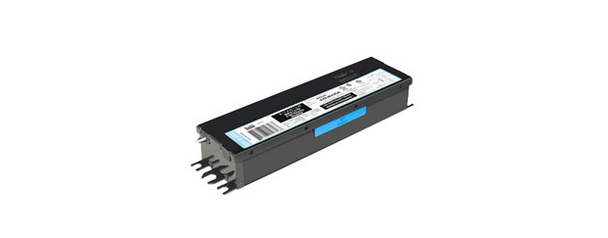

Advance Xitanium 95W 2300mA 347-480V LED Driver
UL Class 2 output with Adjustable Output Current
- Total Output Power: 95 Watts
- Output 100-2750 mA (factory set at 2300mA)
- Input Voltage: 347-480Vac
- Output Voltage Range: 20-54Vdc
- UL Damp and Dry, Type HL
- Dimmable 5%-100%, 0-10V Analog. Minimum default set at 10%.
- Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSF-XH095C275V054BSF1 |
Manufacturer Part No.: |
XH095C275V054BSF1 |
Manufacturer Material Code: |
929000753413 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
347-480V (High Voltage) |
Max Output Power: |
96W |
Max Output Current: |
2750mA |
Output Current Factory Setting: |
2300mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
9.5"(L) x 2.36"(W) x 1.68"(H) |
UL Class: |
Class 2 |
Features: |
High Voltage, F-can IP66 |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
