Description
Advance Xitanium Generation 2 Constant Current LED Driver with SimpleSet, 55W Max Power Output, Universal Input 120V-277V, Programmable Fixed Output Current 100-1800mA (factory set at 1050mA)

, Output 18-54V, Dimmable 0-10V Analog, 1%-100%, IP67

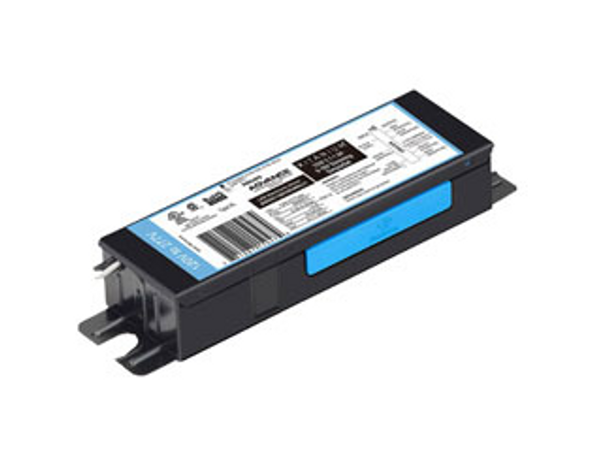

Advance Xitanium 55W Gen2 Programmable Current LED Driver
Features
- Total Output Power: 55 Watts
- Output Current: 100-1800mA, (Factory Set 1050mA)
- Input Voltage: 120 to 277 VAC
- Output Voltage Range: 18V-54V
- UL Damp and Dry, HL Rated
- Dimmable 1%-100%, 0-10V Analog
- Class 1 and Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSF-ADV-XI055C180V054BSJ2 |
Manufacturer Part No.: |
XI055C180V054BSJ2 |
Manufacturer Material Code: |
929002766013 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
55W |
Max Output Current: |
1800mA |
Output Current Factory Setting: |
1050mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6.61"(L) x 1.79"(W) x 1.12"(H) |
UL Class: |
Class 2 |
Features: |
Generation 2, Dimming down to 1% |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
12 |
