Description
Advance Xitanium LED Driver with SimpleSet, 75W Max Power Output, Universal Input 120V-277V, Programmable Fixed Output Current 100-2000mA (factory set 2000mA), Output Voltage 27-54V, Analog 0-10V Dimmable 5%-100%

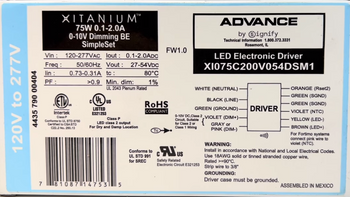

Advance Xitanium 75W 2000mA Programmable Power Supply
Xitanium 75W 2A 54V Output Max LED Driver
- Total Output Power: 75 Watts
- Output Current: .1-2.0A (factory set 2.0A)
- Input Voltage: 120 to 277 VAC
- Output Voltage Range: 27V-54V
- UL Damp and Dry
- Dimmable 5%-100%, 0-10V Analog
- Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSFE-XI075C200V054BPT1 |
Manufacturer Part No.: |
XI075C200V054BPT1 |
Manufacturer Material Code: |
929000722313 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
75W |
Max Output Current: |
2000mA |
Output Current Factory Setting: |
2000mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
16.6"(L) x 1.18"(W) x 1.00"(H) |
UL Class: |
Class 2 |
Features: |
50,000+ hours of life, Operating Temp Range: -35°C to +60°C |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
12 |
