Description
Advance Xitanium Constant Current LED Driver with SimpleSet, 95W Max Power Output, Input 120V-277V, Programmable Fixed Output Current 1000-2750mA (2300mA factory default), Output 20-54V, Analog 0-10V Dimmable 5%-100%, Damp/Dry/HL rated

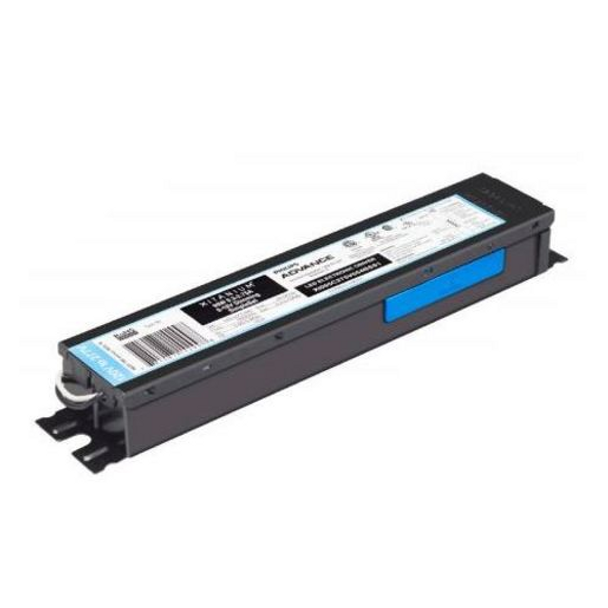

Advance Xitanium 95W Power Supply
With SimpleSet Adjustable Output Current
- Total Output Power: 95 Watts
- Output 1000-2750mA, 2300mA factory default
- Input Voltage: 120-277 VAC
- Output Voltage Range: 20V-54V
- UL Damp and Dry and Hazardous Location Rated
- Dimmable 5%-100%, 0-10V Analog
- Class 1 and Class 2 Wiring
- 6kV combi-wave surge rating to comply with ANSI C82.77-5 CAT C low
Spec Sheets
Additional Information
Our Part No.: |
BSFE-XI095C275V054BSS1M |
Manufacturer Part No.: |
XI095C275V054BSS1 |
Manufacturer Material Code: |
929000753513 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
96W |
Max Output Current: |
2750mA |
Output Current Factory Setting: |
2300mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp + Hazardous Location |
Dimensions: |
9.5"(L) x 1.7"(W) x 1.14"(H) |
UL Class: |
Class 2 |
Features: |
50,000+ hours of life |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
