Description
Advance Xitanium Constant Current LED Driver, 95W Max Power Output, Universal 120V-277V Input, Programmable Fixed Output Current 1000-2750mA (2300mA factory default), 20-54V Output Voltage, Dimmable 0-10V Analog, Damp/Dry HL Rated

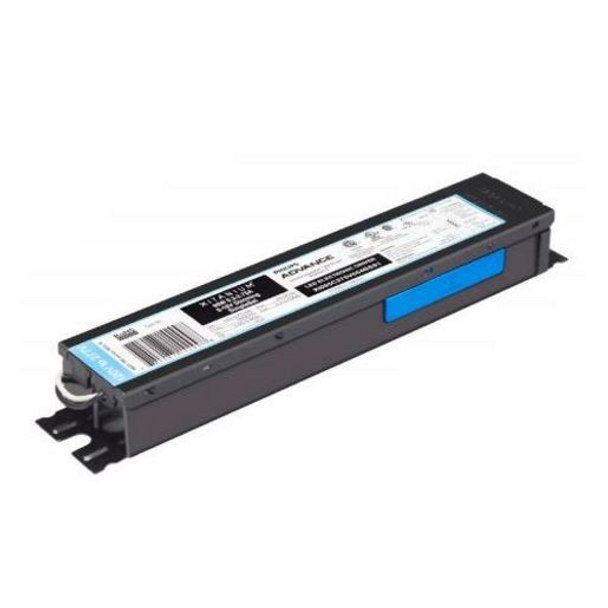

Advance Xitanium 95W 2300mA Power Supply
95W 0.1-2.75A 0-10V Dimming
- Total Max Output Power: 95 Watts
- Output Current Programmable 1000-2750mA, 2300mA factory default
- Input Voltage: 120-277 VAC
- Output Voltage Range: 20V-54Vdc
- UL Damp and Dry and Hazardous Location Rated
- Dimmable 5%-100%, 0-10V Analog
- Class 1 and Class 2 Wiring
Alternate Reference: GARDCO GAR-XI095C275V054BSS2 1900mA FG (912300007211)
Spec Sheets
Additional Information
Our Part No.: |
BSFE-XI095C275V054BSS2M |
Manufacturer Part No.: |
XI095C275V054BSS2 |
Manufacturer Material Code: |
929002720713 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
95W |
Max Output Current: |
2750mA |
Output Current Factory Setting: |
2300mA |
Output Current Programmable Range: |
1000-2750mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp, Hazardous |
Dimensions: |
9.5"(L) x 1.7"(W) x 1.14"(H) |
UL Class: |
Class 2 |
Features: |
50,000+ hours of life, Operating Temp Range: -40°C to +55°C |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
