Description
Advance Xitanium SR LED Driver is Sensor Ready (SR), 95W Max Power Output, Input 120V-277V, Adjustable Output Current via External Resistors or SimpleSet Programming 100-2750mA Fixed (factory default 2000mA), Analog 0-10V dimming, Output 10-54V, Dry & Damp

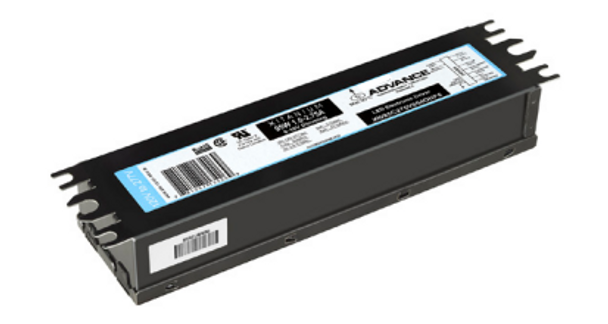

Advance Xitanium SR 90W 2750mA LED Driver
Adjustable Fixed Output Current (AOC) via External Resitors (Rset) or SimpleSet Programming.
Xitanium SR features a standard digital interface to enable direct connection to any suitably qualified RF sensor on the market. Functionality is integrated into the SR driver that ordinarily would require additional auxiliary components. The result is a simpler, less expensive light fixture that can enable every fixture to become a wireless node.
- Total Output Power: 95 Watts
- Output Current: .1 to 2.75A (factory set at 2750mA)
- Input Voltage: 120 to 277 VAC
- Output Voltage Range: 10V-54V
- UL Damp and Dry Location Rated
- Analog Dimming 0-10V.
- Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSF-XI095C275V054DNF5M |
Manufacturer Part No.: |
XI095C275V054DNF5 |
Manufacturer Material Code: |
929000735713 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
95W |
Max Output Current: |
2750mA |
Output Current Factory Setting: |
2750mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
11.02"(L) x 1.18"(W) x 1.00"(H) |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
18 |
