Description
Advance Xitanium SR LED Driver is Sensor Ready (SR), 150W Max Power Output, Input 120V-277V, Output Current 700mA Fixed, Analog Dimming 0-10V, Output 60-210V, Dry & Damp

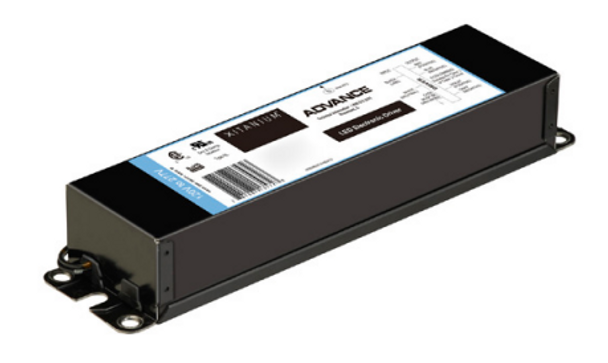

Advance Xitanium SR 150W 700mA LED Driver
Fixed Output Current
Xitanium SR features a standard digital interface to enable direct connection to any suitably qualified RF sensor on the market. Functionality is integrated into the SR driver that ordinarily would require additional auxiliary components. The result is a simpler, less expensive light fixture that can enable every fixture to become a wireless node.
- Total Output Power: 150 Watts
- Output Current: .7A
- Input Voltage: 120 to 277 VAC
- Output Voltage Range: 60V-210V
- UL Damp and Dry Location Rated
- Analog Dimming 0-10V.
- Class 1 and Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSF-XI150C070V210FNF1M |
Manufacturer Part No.: |
XI150C070V210FNF1 |
Manufacturer Material Code: |
929000766613 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
150W |
Max Output Current: |
700mA |
Output Current Factory Setting: |
700mA |
Max Output Voltage: |
210V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
11.02"(L) x 1.18"(W) x 1.00"(H) |
UL Class: |
Class P |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
18 |
