Description
Advance Xitanium Programmable Constant Current LED Driver, 180W Max Power Output, Input 120V-277V, Programmable Output Current 100mA to 1800mA (Factory Default 1500mA), Output 50-144V, Dimmable Analog 0-10V 10%-100%, Auxiliary Power

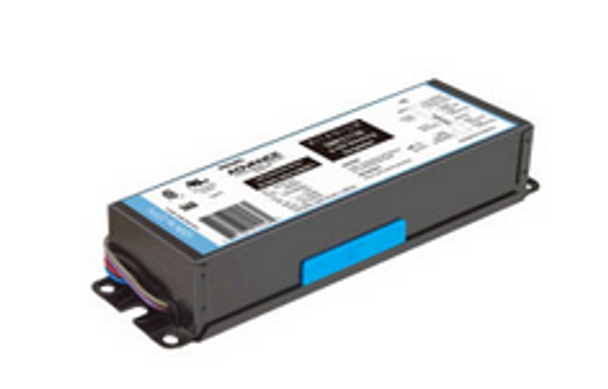

Advance Xitanium 180W 1500mA Programmable LED Driver
- Total Output Power: 180 Watts
- Input Voltage: 120-277 VAC
- Output Voltage Range: 50-144V
- Output Current: Programmable 100mA to 1800mA (Factory Default 1500mA) via SimpleSet
- UL Damp and Dry and HL
- 0-10V Analog 10% to 100% Dimming Range
- Operating Temp Range: -40 to +55 °C
- Class 1 and 2 Wiring
- Auxiliary Power 3W, 24Vdc
Spec Sheets
Additional Information
Our Part No.: |
BSF-XI180C180V144PSF2 |
Manufacturer Part No.: |
XI180C180V144PSF2 |
Manufacturer Material Code: |
929002704913 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
180W |
Max Output Current: |
1800mA |
Output Current Factory Setting: |
1500mA |
Output Current Programmable Range: |
100-1800mA |
Max Output Voltage: |
144V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
9.45"(L) x 2.3"(W) x 1.5"(H) |
UL Class: |
Class 2 |
Features: |
Auxiliary Power 3W, 24V |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
