eldoLED by Acuity

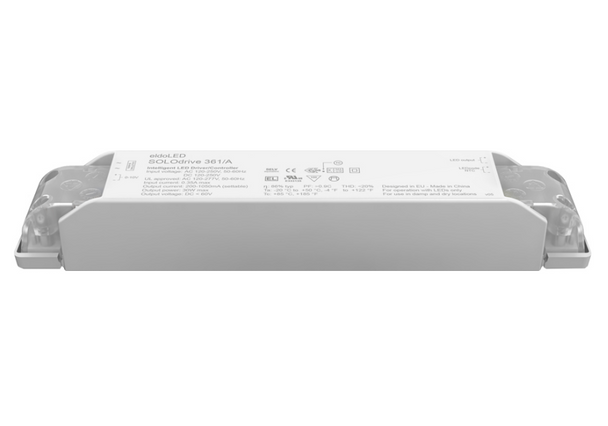

361/A eldoLED SOLOdrive Programmable Constant Current LED Driver - 30W Dimmable

(No reviews yet) Write a Review
SKU:
BS46-SOLO361/A
MPN:
SL0361A6
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • 361/A eldoLED SOLOdrive Programmable Constant Current LED Driver - 30W Dimmable
  • eldoLED SOLOdrive 361/A - Output Parameters
  • eldoLED SOLOdrive 361/A - Programming Code
  • eldoLED SOLOdrive 361/A - Terminal Connections
  • eldoLED SOLOdrive 361/A -Dimensions
  • eldoLED SOLOdrive 361/A - Dim Curves
  • eldoLED Form Factor Overview
MSRP: $90.00
Now: $68.95
Was: $90.00
— You save $21.05

Description


SOLOdrive 361/A Constant Current LED Driver, 30W Max Output Power, Universal 120-277V Input, Programmable Fixed Output Current 150-1400mA, 2-55V Output, Analog 0-10V Dimming 0.1%-100%, Programmable Dim Curve (LIN, LOG, SQR), Feet mount with terminal connectors

eldoLED SOLOdrive 30W Programmable LED Driver

 Features:

  • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
  • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
  • ENERGY STAR and CA Title 24 start-up performance
  • NTC interface for robust thermal management

If you do not enter the programming settings above before Add to Cart , we will contact after ordering to get the output settings located on a sticker on the driver so we can program it to this required spec. We are not able to ship with out the programming information.

For example 600MA LIN is what we will need to program your driver prior to shipping.




Common Program Codes

Model Number CI Code UPC   Model Number CI Code UPC
SL0361A3 600MA LOG *236JVF 889804599473   SL0361A6 535MA LOG 0.6MIN *2738P7 194995692859
SL0361A6 1050MA LIN 0.6MIN *274M06 194995996476   SL0361A6 550MA LIN *288F5R 197590409259
SL0361A6 1050MA LIN 1.0MIN *274GSF 194995962242   SL0361A6 550MA LOG *272R2H 194995566976
SL0361A6 1050MA LOG *2717SE 194995208852   SL0361A6 565MA LIN 0.6MIN *274VJE 196182052552
SL0361A6 1050MA LOG 0.6MIN *274M01 194995996414   SL0361A6 565MA LOG 0.6MIN *274VJ0 196182052453
SL0361A6 1260MA LIN 0.6MIN *274VJT 196182052668   SL0361A6 575MA LIN *2804VN 196183309969
SL0361A6 1260MA LOG 0.6MIN *274VJS 196182052675   SL0361A6 575MA LOG *272EA8 194995486786
SL0361A6 1400MA LOG *2738WE 194995694556   SL0361A6 580MA LOG *27491G 194995918881
SL0361A6 250MA LOG *2877WE 197590139545   SL0361A6 600MA LOG *28469U 197589420050
SL0361A6 275MA LIN *276H5L 196182429392   SL0361A6 640MA LOG *2738P2 194995692828
SL0361A6 275MA LOG *273PM0 194995795499   SL0361A6 650MA LIN *2745E8 194995896325
SL0361A6 280MA LIN 0.6MIN *274VJ3 196182052460   SL0361A6 650MA LOG *2761TH 196182326134
SL0361A6 280MA LOG 0.6MIN *274VHK 196182052330   SL0361A6 700MA LIN *2852R9 197589629507
SL0361A6 300MA LOG *277GM4 196182666261   SL0361A6 700MA LOG *269EJC 194994764816
SL0361A6 310MA LIN 0.6MIN *274VJ4 196182052484   SL0361A6 700MA SLN *2827WX 196183802774
SL0361A6 310MA LOG 0.6MIN *274VHN 196182052378   SL0361A6 710MA LIN 0.6MIN *2728HW 194995456543
SL0361A6 350MA LIN 0.6MIN *274M04 194995996469   SL0361A6 710MA LOG 0.6MIN *274LXA 194995995950
SL0361A6 350MA LOG *259SYW 193048260045   SL0361A6 750MA LIN *2748FY 194995914180
SL0361A6 350MA LOG 0.6MIN *274LYY 194995996438   SL0361A6 750MA LIN 0.2MIN *277VWJ 196182771590
SL0361A6 350MA SLN *2746W6 194995904327   SL0361A6 750MA LOG *272EAA 194995486809
SL0361A6 375MA LIN *2729FM 194995463589   SL0361A6 770MA LIN 0.6MIN *274VJP 196182052613
SL0361A6 375MA LOG *272N91 194995553181   SL0361A6 770MA LOG 0.6MIN *274VJN 196182052620
SL0361A6 400MA LIN *276SNF 196182499517   SL0361A6 775MA LOG *279X0V 196183258434
SL0361A6 400MA LOG *276N5E 196182470677   SL0361A6 787MA LIN 0.6MIN *272N93 194995553204
SL0361A6 425MA LOG *280PN3 196183444578   SL0361A6 787MA LOG 0.6MIN *274M02 194995996445
SL0361A6 450MA LIN *279FMR 196183140111   SL0361A6 800MA LOG *275U5W 196182275111
SL0361A6 450MA LIN 0.6MIN *274VJL 196182052590   SL0361A6 925MA LIN 0.6MIN *274VJG 196182052569
SL0361A6 450MA LOG 0.6MIN *274VJJ 196182052576   SL0361A6 925MA LOG 0.6MIN *274VJ1 196182052446
SL0361A6 455MA LIN 0.6MIN *274VJA 196182052538   SL0361A6-BIS 350MA LOG *2690AY 194994666691
SL0361A6 455MA LOG 0.6MIN *274VHS 196182052347   SL0361A6-BIS 700MA LOG *269E0W 194994760481
SL0361A6 470MA LIN 0.6MIN *274VJC 196182052545   SL0361A6-CA24 175MA LOG *272VN6 194995602070
SL0361A6 470MA LOG *28491N 197589440423   SL0361A6-CA24 300MA LOG *282M7U 197589054835
SL0361A6 470MA LOG 0.6MIN *274VHT 196182052385   SL0361A6-CA24 350MA LOG *272XAS 194995614912
SL0361A6 475MA LIN 0.6MIN *274VJ7 196182052521   SL0361A6-CA24 500MA LIN *272RFS 194995570027
SL0361A6 475MA LOG 0.6MIN *274VHW 196182052408   SL0361A6-CA24 700MA LIN *272X2P 194995612789
SL0361A6 500MA LOG *2729YP 194995467884   SL0361A6-CA24 700MA LOG *272GP7 194995506132
SL0361A6 525MA LIN *2733JT 194995653997   SL0361A6-PSE 150MA LOG *285U1A 197589803259
SL0361A6 525MA LIN 0.6MIN *274M03 194995996452   SL0361A6-PSE 350MA LOG *266N8V 194994088905
SL0361A6 525MA LOG *279WN3 196183255372   SL0361A6-PSE 400MA LOG *285U1C 197589803242
SL0361A6 525MA LOG 0.6MIN *274M08 194995996506   SL0361A6-PSE 500MA LOG *2700VS 194994913245
SL0361A6 535MA LIN 0.6MIN *274M07 194995996483   SL0361A6-PSE 700MA LOG *269EJK 194994764854
View AllClose

Additional Information

Our Part No.:
BS46-SOLO361/A
Manufacturer Part No.:
SL0361A
Brand:
Acuity eldoLED SOLOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
8.27" L x 1.59" W x 1.32" H
UL Class:
Class 2
Features:
Dimming Down to 0.1%
Warranty:
Manufacturer's 3 Year
Case Size:
10
