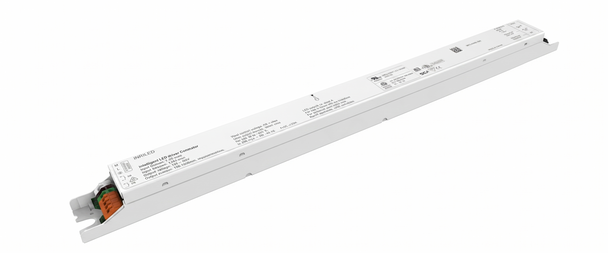

75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) Programmable Constant Current LED Driver - 75W LEDcode2 Aux

(No reviews yet) Write a Review
SKU:
BS46-EC75L-M1M0Z
MPN:
EC75L-M1M0Z3
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 3% off
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) Programmable Constant Current LED Driver - 75W LEDcode2 Aux
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) - Specifications
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) - Control
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) - Wiring
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) - Dimensions
  • edloLED Linear Built-in L-Family LED Drivers
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) - Label
  • 75L-M1M0Z eldoLED ECOdrive (EC75L-M1M0Z) - Programming
MSRP: $120.00
Now: $89.95
Was: $120.00
— You save $30.05
Frequently bought together:

Description


ECOdrive Constant Current LED Driver, 75W Max Power Output, Programmable Fixed 700-2100mA Output Current, Single Channel 2-55V Output Voltage, LEDcode2.1, Auxiliary Port

eldoLED ECOdrive 75L-M1M0Z Programmable Constant Current LED Driver - 75W LEDcode2

ECOdrive, 75W, LEDdoce2 + AUX, 1 control channel, constant current, 1 x 55V output, side feed, long metal, 1% Dimming

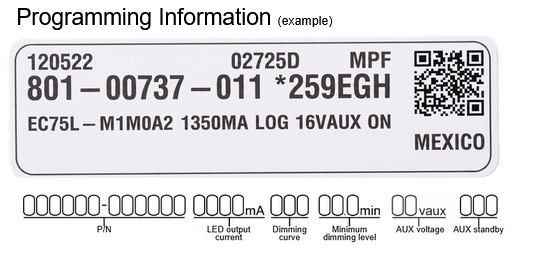

Programming Options:

  • LED Output Current: Fixed Value between 700-2100mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic (factory default)
  • Minimum Dimming Level: Default 1.0% (if blank) in 0.1% increments
  • AUX Voltage: 16V (default if blank). Increments 1V between 4V and 16V; 2V between 16V and 24V.
  • AUX Standby: ON (default if blank)/OFF

Common Custom Program Settings

Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
EC75L-M1M0Z2 1200MA LIN 16VAUX ON *267MJ5 194994329855   EC75L-M1M0Z3 1225MA LIN 18VAUX ON *292RT3 198934615008
EC75L-M1M0Z2 1225MA LIN 18VAUX ON *2666W3 193048958164   EC75L-M1M0Z3 1325MA LIN 10.0MIN 18VAUX ON *28291W 196183810977
EC75L-M1M0Z2 1250MA LIN 16VAUX ON *267MK7 194994330165   EC75L-M1M0Z3 1325MA LIN 18VAUX ON *28291C 196183810779
EC75L-M1M0Z2 1350MA LIN 18VAUX ON *2666W4 193048958171   EC75L-M1M0Z3 1350MA LIN 18VAUX ON *290NLN 196183842220
EC75L-M1M0Z2 1400MA LOG 16VAUX ON *262W86 191723764369   EC75L-M1M0Z3 1400MA LIN 10.0MIN 18VAUX ON *28291M 196183810793
EC75L-M1M0Z2 1470MA LIN 16VAUX ON *276CEF 196182399268   EC75L-M1M0Z3 1400MA LIN 18VAUX ON *28290C 196183810632
EC75L-M1M0Z2 1500MA LIN 16VAUX ON *275A86 196182156212   EC75L-M1M0Z3 1500MA LIN 18VAUX ON *275A87 196182156236
EC75L-M1M0Z2 1525MA LIN 16VAUX ON *2753P3 196182108129   EC75L-M1M0Z3 1525MA LIN 18VAUX ON *27540N 196182110498
EC75L-M1M0Z2 1600MA LIN 16VAUX ON *2753P4 196182108099   EC75L-M1M0Z3 1600MA LIN 18VAUX ON *27540P 196182110535
EC75L-M1M0Z2 1650MA LIN 16VAUX ON *267MJG 194994329947   EC75L-M1M0Z3 1725MA LIN 10.0MIN 18VAUX ON *28291U 196183810953
EC75L-M1M0Z2 2000MA LIN 16VAUX ON *2753P5 196182108112   EC75L-M1M0Z3 1725MA LIN 18VAUX ON *28290U 196183810663
EC75L-M1M0Z2 2100MA LOG *262W88 191723764383   EC75L-M1M0Z3 1900MA LIN 18VAUX ON *284R5P 197589546248
EC75L-M1M0Z2 700MA LIN 16VAUX ON *2705P6 194994951452   EC75L-M1M0Z3 2000MA LIN 18VAUX ON *27540T 196182110559
EC75L-M1M0Z3 1050MA LOG 16VAUX ON *274FFC 194995951840   EC75L-M1M0Z3 700MA LOG 16VAUX ON *269JXC 194994801108
EC75L-M1M0Z3 1125MA LIN 18VAUX ON *292RSY 198934614933
View AllClose

Additional Information

Our Part No.:
BS46-EC75L-M1M0Z
Manufacturer Part No.:
EC75L-M1M0Z3
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
75W
Max Output Current:
2100mA
Output Current Programmable Range:
700-2100mA
Max Output Voltage:
55V
Dimming:
LEDcode2
Location Rating:
Dry/Damp
Dimensions:
16.71" L x 1.21" W x 1.09" H
Product Data Sheet:
See PDF Link Provided
UL Class:
Class 2
Features:
Auxiliary Port
Warranty:
Manufacturer's
Case Size:
10
