Description
AC Electronics (AC LEDS) Switch-Hitter Constant Current LED Driver, Max Power/Fixed Output Current: 50W/2500mA 42W/2100mA 35W/1750mA 21W/1050mA, Universal 120-277V Input, 12-20V Output Volts, Analog 0-10V Dimming 10-100%, Dry/Damp Location, Feet Mounting with Leads

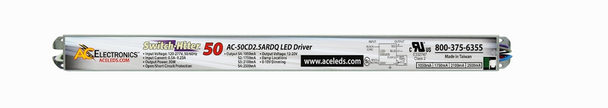

AC Electronics Constant Current Switch Hitter LED Driver
- Switch 1: 50W/2500mA
- Switch 2: 42W/2100mA
- Switch 3: 35W/1750mA
- Switch 4: 21W/1050mA
- Output Voltage: 12-20VDC
- Input Voltage: Universal 120-277VAC
- Analog 0-10V Dimming
- Dimmable Range: 10-100%
- Max Case Temp: 194°F/90°C
- Min Starting Temp: -40°F/-40°C
- UL and cUL Recognized
- UL Outdoor Type 1
- Class 2
- Class A Sound Rating
- RoHS Compliant
- IP64
- Surge Protection
- Feet Mount with Leads
Spec Sheets
Additional Information
Our Part No.: |
BS22-AC-50CD2.5ARDQ |
Manufacturer Part No.: |
AC-50CD2.5ARDQ |
Brand: |
ACE LEDS |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
50W, 42W, 35W, 21W |
Max Output Current: |
2500mA, 2100mA, 1750mA, 1050mA |
Max Output Voltage: |
20V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
16.5" (L) x 1.2" (W) x 1.09" (H); Mounting: 16.2" |
UL Class: |
Class 2 |
Features: |
Side Feet Mount with Leads |
Warranty: |
Manufacturer's |
Case Size: |
30 |
