Description
AC Electronic LED Emergency Driver, 10W Constant Output Power, Universal 120-277V Input, Power-Activate, 90 minutes, 15-55VDC Voltage Output, 5A normal / 180-670mA emergency output current, Feet-Mount with Conduit

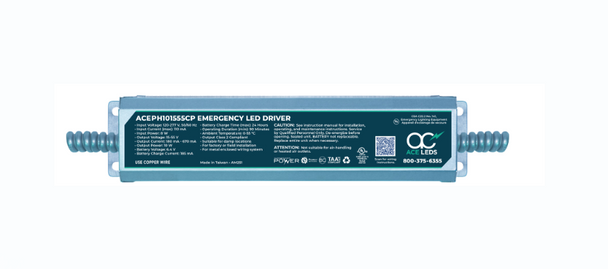

AC Electronics 10W Constant Power Emergency LED Driver - Power-Activate, Conduit
ACEPH101555CP is a UL Listed Linear Emergency LED Driver that enables the same LED fixture to be used for both normal and emergency operation. It includes the Power Activate feature, which eliminates the external battery connector.
Features and Performance
- At least 90 minute operation in emergency mode
- Universal input voltage- 120-277VAC
- Class 2
- Includes a miniature illuminated test switch status indicator: Enables mounting in small spaces
- UL and cUL Listed as an Emergency LED Driver (UL924)
- CEC Title 20 compliant
- Surge Protection - 3kV
- Open/Short/Over-Voltage/Over Temperature protection
- Feet Mounting with Conduit
- IP30 Rated Damp/Dry
Spec SheetsAdditional Information
Our Part No: |
BS22-ACE-ACEPH101555CP |
Mfr Part #: |
ACEPH101555CP |
Fixture Type: |
Emergency |
Max Output Power: |
10W |
Max Output Current: |
670mA |
Max Output Voltage: |
55V |
Input Voltage: |
120-277V (Universal) |
Dimensions: |
9.5" (L) x 1.70" (W) x 1.2" (H); MC 8.9" |
Case Size: |
10 |
Replaces: |
ACE-H10i-1555CP, ACE-H10-55-190C |
Features: |
Power Activate, Conduit, Test Switch |
Warranty: |
Manufacturer's |
