Description
Armacost Standard Constant Voltage LED Drivers, Select 12W/24W/36W/60W/120W, 120VAC Input, Fixed 12Vdc or 24Vdc Output, Prewired Plug-in or Direct-wire, Compatible with LV LED dimmers and color controllers

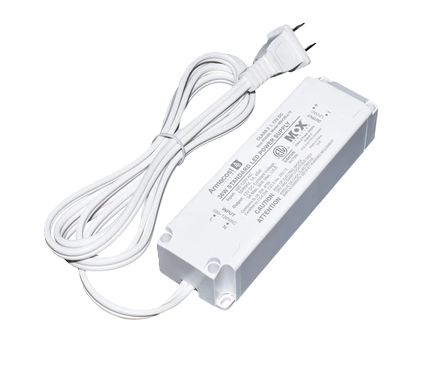

Armacost Constant Voltage LED Power Supply - 12W/24W/36W/60W/120W and 12V/24V
Armacost Constant Voltage LED Drivers are designed for hardwired or plug-in applications and are available in a variety of output wattages and voltages.
Features
- Total Max Power Output: 12/24/36/60/120 Watts
- Input Voltage: 100-120VAC
- Constant Voltage Output: 12VDC or 24VDC
- No minimum Load Requirement
- Wiring: Prewired with AC cord and plug for use with existing outlets or can also be direct wired via terminal block
- IP20 for Dry Locations
- UL Class 2 (120W non Class 2)
- Compatible with Low Voltage LED dimmers, Color Controllers, Switches
- Designed for LED loads
- 30,000 hour life
Model Options
Spec SheetsAdditional Information
Our Part No.: |
BSF-ARM-STD-CV |
Manufacturer Part No.: |
Based on Product Selected |
Brand: |
Armacost |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
12W, 24W, 36W, 60W, 120W |
Max Output Voltage: |
12V, 24V |
Dimming: |
Dimmable |
Location Rating: |
Dry |
Dimensions: |
See Product Specification Sheet Link Provided |
UL Class: |
Class 2 |
Features: |
Pre-wired Plug-in, Direct-wire Option |
Warranty: |
Manufacturer's |
Case Size: |
10 |
