Description
Magnitude Lighting Constant Voltage LED Driver, 96W Power Output, Universal 120-277V Input, Fixed 24Vdc Output, Output Current up to 4100mA, Universal Dimming Analog 0-10V/Forward Phase (TRIAC)/Reverse, Phase (ELV), Dim-to-Dark, Aux-port

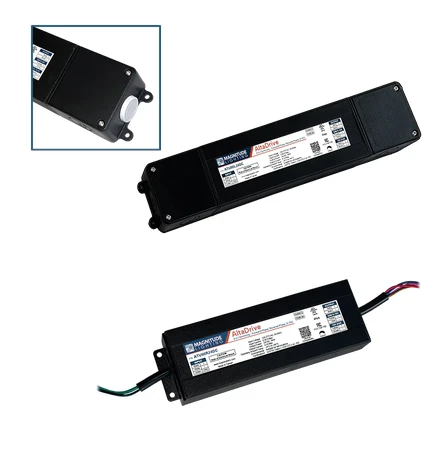

Magnitude AltaDrive Constant Voltage LED Driver - 96W 24VDC Dimmable
Features
- Max Power Output: 96W
- Fixed Output Voltage: 24VDC
- Output Current: 4100mA Max
- Case Style: J-box, J-box Pre-wired with Lutron AWN Athena sensor, or Flying Leads
- Dimming: 0-10V Analog, Forward Phase (TRIAC), Reverse, Phase (ELV)
- Dim to Dark 0.1-100%,
- Linear Dim Curve
- Auxiliary Power Port: 15VDC up to 200mA (powers accessories that operate between 12VDC and 24VDC)
- Cap off if not using to avoid short
- IP66 Rated, dry or wet locations
- Aluminum Black Anodized Case
- Class 2
- CEC Title 20/24 Compliant
Spec Sheets
Download the official manufacturer documentation and specifications:
Videos
View AllClose
Additional Information
Our Part No: |
BSF-MAG-ATU96 |
Mfr Part #: |
ATU96L24DC, ATU96L24DC-AWN, ATU96R24DC |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
96W, 100W |
Max Output Voltage: |
24V |
Max Output Current: |
4100mA |
Fixed Output Voltage: |
24V |
Dimming: |
Analog (0-10V), TRIAC, ELV |
Dimensions - J-box: |
12.1" W x 2.4" H x 1.4" D |
Dimensions - Leads: |
7.5" W x 2.4" H x 1.4" D |
Product Data Sheet: |
See PDF Link Provided |
Features: |
PWM Output for consistent performance with all types of LED tape |
Features: |
15VDC Aux Output (powers accessories that operate between 12VDC and 24VDC) |
UL Class: |
Class 2 |
Location Rating: |
IP66 Rated, dry/damp/wet |
Alternative Keywords: |
No |
Warranty: |
Manufacturer's |
Case Size: |
10 |
