Description
BODINE Electronic Emergency Ballast, 300-750 Lumens, 120V to 277V, Flex Conduit on Sides and LED indicator, Indoor and Damp Location Rated, 18-42 Watt 4-pin CFLs lamps without integral starters.

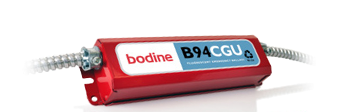

Bodine B94CGU Emergency CFL Light Ballast
This product is for use with one 18 W through 42 W (4-pin) compact fluorescent lamp without integral starter
Features
- TYPE 1, OPTION 2 : 2 feet of flexible conduit at each end with LED Indicator Test Switch and Wall Plate
- Initial light output 300 to 750 lumens
- Illumination time of 90 minutes
- Ballast temp. rating Ambient Temp. Range 32°F to 122°F
- Dual input voltage of 120V to 277 VAC, 60 Hz
- High-temperature, maintenance-free nickel-cadmium battery
- Electrical rating 4.0 Watts
- Suitable for indoor and damp locations - factory and field install
- Suitable for Low-Mercury lamps
Spec SheetsAdditional Information
Our Part No: |
BS27-B94CGUM |
Mfr Part #: |
BG94CGU |
Manufacturer Material No.: |
913702400801 |
Input Voltage: |
120-277 |
Warranty: |
2 Year Manufacturers |
Lamp: |
18-42W compact fluorescent lamps without integral starters, including (4- pin) twin and quad lamps. See product data sheet for details |
Dimensions: |
9.5" (L) x 2.4" (W) x 1.5" (H): Mounting Center 8.9" |
Product Data Sheet: |
|
Features: |
LED Charging Indicator Light with Wall Plate |
Fixture Type: |
Emergency |
Case Size: |
ea |
Alternative Keywords: |
PDL94G20M |
