Description
HALO HFL Flexible Linear LED Tape System, 24' and 96' LED Tape Spools, 24V LED Drivers Phase and Analog 0-10V Dimming, Illuminated Angle/Junction Connectors, Color Field Selectable CCT: 2700K 3000K 3500K 4000K 5000K, Damp/Dry Locations, CA T24 Compliant
Cooper Lighting HFL Flexible Linear LED Tape System

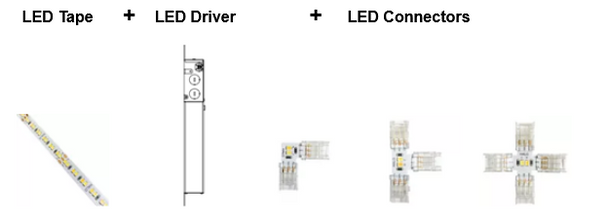

A complete setup includes: LED Tape, Driver, and Connectors. Optional Aluminum Channels and Accessory Mounting Kits also available.
Features
- 24V Flexible Dimmable LED Tape: 24 ft and 96 ft spools
- Field-cuttable every 2.5 in. with preinstalled 3M adhesive backing
- Field selectable CCT (via LED Driver): 2700K, 3000K, 3500K, 4000K, 5000K
- Lumen outputs: 200 lm/ft and 400 lm/ft
- High-density LED spacing for smooth linear illumination (60 LEDs/ft)
- Connectors:
- Tape-to-tape with integrated LEDs for continuous illumination
- Tape-to-wire Connectors
- Drivers (5%-100% dimming):
- 60W & 100W Phase Cut (LE/TE) Dimming Driver (120V)
- 50W & 100W 0–10V Dimming Driver (UNV 120–277V)
- UL listed (Damp-location)
- Field-cuttable lensed aluminum channels
Spec SheetsAdditional Information
Our Part No: |
BSF-CPR-HALO-HFL |
Mfr Part #: |
Based on options selected |
Manufacturer Material Code: |
Based on options selected |
Type: |
LED Flexible Linear LED Tape |
Spools: |
24', 96' |
Lumens: |
200lm/ft. 400lm/ft |
Features: |
Field Select Color Temperature |
Color Temp: |
2700K, 3000K, 3500K, 4000K, 5000K |
Input Voltage: |
120V, 120-277V |
Dimming: |
Phase Cut (LE/TE), Analog 0-10V |
CRI: |
90+ |
Dimensions: |
See PDF Link Provided |
Regulatory Qualifications: |
UL Listed, CA T24 Compliant |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's 5 Year |
