Description

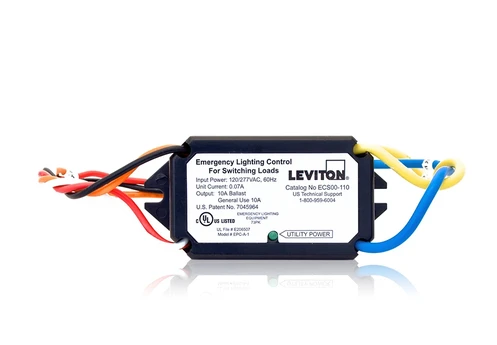

Leviton Emergency Power Control Switching Loads Transfer And Shunt Relay, 10A 60hz General Use, 120-277V Input
Leviton Switching Luminaire Control - 10A 120-277V
A common switch controls both normal and emergency lighting in a space. Upon loss of normal power, the emergency lighting comes on regardless of switch position.
Features
- Control up to 20 regular light fixtures as approved emergency lights
- Electrical loads switching capability: maximum of 10 Amps
- Flush mount or mount above a suspended ceiling in a single-gang plaster ring makes installation simple for varying applications
- Power Indicator: LED for utility power (green) for easy verification of normal power
- Color: Black
Loads
- General Use 10A
- Electronic Ballast / LED 16A
- Magnetic Ballast 5A
- Tungsten (120V) 1800W, (277V) 3000W
Spec SheetsVideos
View AllClose
Additional Information
Our Part No: |
BSF-LVTN-ECS00-110 |
Mfr Part #: |
ECS00-110 |
Manufacturer Material Code: |
NA |
Brand: |
Leviton |
Fixture Type: |
Power Supply |
Lighting Load Max: |
10A |
Input Voltage: |
120-277V (Universal) |
Features: |
Automatic Diagnostic, Indicator Light |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
10 |
