Description

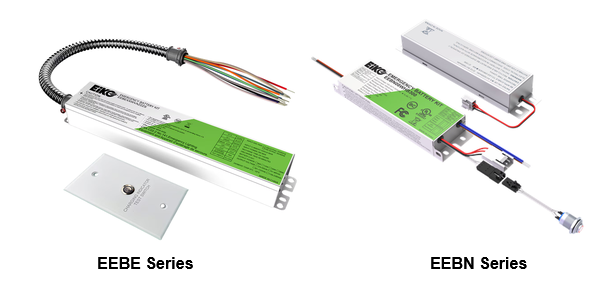

EiKO Emergency LED Driver Integral or Separate Battery Configuration, 8W/15W/18W/20W/30W/40W Constant Output Power, Universal 120-277V Input, Lithium Battery, EEBN has separate battery, EEBE has flex conduit and test button attached
EiKO EEB-Series Emergency LED Driver Kit
An LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation, featuring integrated self diagnostic circuitry that automatically conducts regular tests to verify proper emergency capability
Features
- Emergency Illumination time of 90 minutes
- Self-diagnostic circuitry performs annual/monthly testing automatically
- Universal input voltage of 120-277 VAC, 50/60 Hz (100-347V available)
- UL Listed for field installation
- UL Listed for dry/damp locations
- Long-life high-temperature recyclable Lithium battery
- Meets CEC Title 20 (California Energy Commission) efficiency standards
Spec SheetsAdditional Information
Our Part No: |
BSF-EK-EEB-Series |
Mfr Part #: |
EEBN15WUA050, EEBN20WUA050, EEBN08WUA050, EEBE15WUA050S, EEBE30WUA050S |
Manufacturer Material Code: |
10896, 10897, 10918, 10919, 10920 |
Fixture Type: |
Emergency |
Input Voltage: |
120-277V (Universal) |
Features: |
Separate or Integral Battery Configuration |
Wattage: |
8W, 15W, 20W, 30W |
Dimensions: |
12.3" (L) x 2.32" (W) x 1.54" (H) |
CA Title 20 Compliant: |
Yes |
Product Data Sheet: |
See PDF Link Provided |
Case Size: |
10 |
Warranty: |
Manufacturer's |
