Description

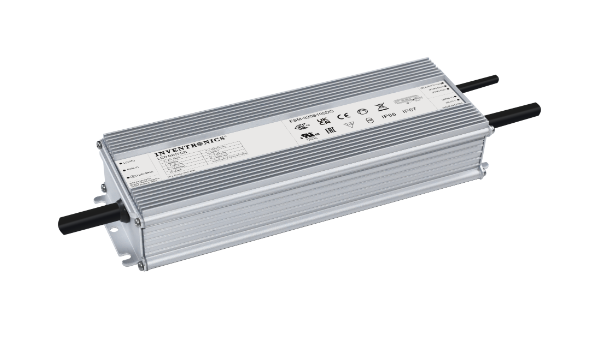

Inventronics Constant Current Programmable LED Driver, 320W Max Power Output, High Voltage 277-480V Input, Programmable Output Current 1050-1500mA (1400mA Factory Set), 107-305V Output, Waterproof (IP67), Analog 0-10V Dimming and PWM
Inventronics 320W 2100mA Constant Current LED Driver
- Max Power Output 320W
- Programmable Output Current 1050-1500mA (1400mA Factory Set)
- Controls-Ready
- Dim-to-Off with Low Standby Power
- Dimming Controls: 0-10V, PWM, Multiple Timers
- High Level of Built-in Surge Protection: 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- IP67 and UL Dry/Damp/Wet Location, Type HL
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
Spec Sheets
Additional Information
Our Part No.: |
BS61-ESM-320S150DT |
Manufacturer Part No.: |
ESM-320S150DT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
277-480V (High Voltage) |
Max Output Power: |
320W |
Max Output Current: |
1500mA |
Output Current Factory Setting: |
1400mA |
Output Current Programmable Range: |
1050-1500mA |
Output Current Common Custom Settings: |
1050mA, 1400mA, 1500mA |
Max Output Voltage: |
305V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
8.82" L x 3.14 W x 1.75" H |
UL Class: |
Class 1 |
Features: |
0-10V, PWM, Multiple Timer Dimming |
Warranty: |
Manufacturer's |
Case Size: |
12 |
