Description

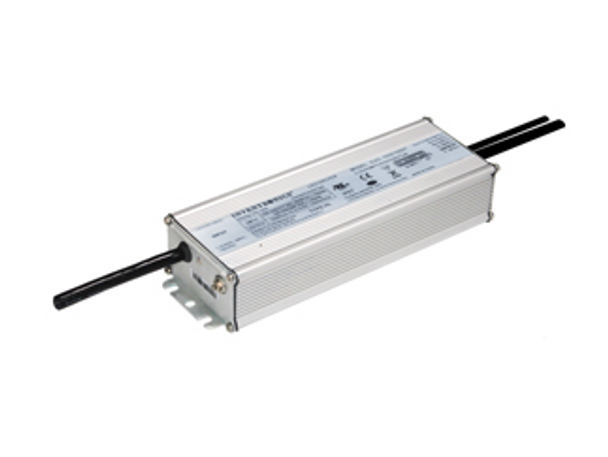

Inventronics EUG-150S560DT Constant Current 150W Programmable Dimming LED Driver, Universal 120-277V input, 14-39Vdc output, Current Output 3850-5600mA (4200mA Factory Set), Waterproof (IP67), Dimmable
 |
EUG-150S560DT Spec Sheet |
Inventronics Programmable 150W 4200mA Constant Current LED Driver
- Programmable, Enabling Hundreds of Configurations. Current Output 3850-5600mA (4200mA Factory Set) at 100% dimming (10% to 100%)
- Controls-Ready
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming Controls: 0-10V, PWM, Multiple Timers
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
Additional Information
Our Part No.: |
BS61-EUG-150S560DT |
Manufacturer Part No.: |
EUG-150S560DT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
150W |
Max Output Current: |
5600mA |
Output Current Factory Setting: |
4200mA |
Output Current Programmable Range: |
3850-5600mA |
Max Output Voltage: |
39V |
Dimming: |
Analog (0-10V), PWM, Timer |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
8.62" L x 2.66" W x 1.56" H |
UL Class: |
Class 1 |
Features: |
0-10V, PWM, Multiple Timer Dimming |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
