Description

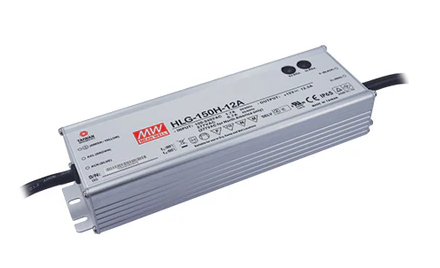

Mean Well Constant Current + Constant Voltage LED Driver, 150W Max Power Output, Universal 120-277V Input, 21-42Vdc Output, 3600mA Output, HL Hazardous Location Rated
Mean Well CC + CV LED Driver - 150W Hazardous Location Rated
HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output.
HLG-150H-42A Specifications:
- A version - Io and Vo adjustable through built-in potentiometer
- Total Max Output Power: 150 Watts
- Input Voltage: 120-277 VAC
- IP rating: IP65
- Class 1, ivision 2 hazardous (Classified) location.
- See Specification sheet for details
Spec Sheets
Additional Information
Our Part No: |
BS14-MNW-HLG-150H-42A |
Mfr Part #: |
HLG-150H-42A |
Fixture Type: |
LED |
Driver Type: |
Constant-Current + Constant-Voltage |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
150W |
Max Output Current: |
3600mA |
Max Output Voltage: |
42V |
Product Data Sheet: |
See PDF Link Provided |
Dimensions: |
8.9"(L) x 2.67"(W) x 1.53"(H) |
Features: |
Current and Voltage Field Adjustable via built-in potentiometer |
Dimming: |
Non Dimming |
Location Rating: |
IP65 |
Case Size: |
10 |
Warranty: |
Manufacturer's |
