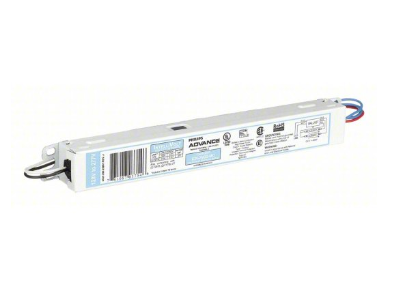

ICN-2M32-MC Advance Centium Ballast - F32T8 Micro Case

What is the Philips Advance ICN-2M32-MC?

The ICN-2M32-MC is a Centium series electronic fluorescent ballast manufactured by Philips Advance (Signify). It is primarily engineered to operate one or two 32-watt T8 linear fluorescent lamps (F32T8), offering critical advantages including IntelliVolt universal voltage (120-277V), high-efficiency instant start ignition, and an ultra-compact Micro-Can (MC) housing. It is the optimal choice for commercial lighting retrofits and low-profile fixtures where space is extremely limited but high efficiency is required.

Core Features and Technical Advantages

Selecting a Micro-Can Centium electronic ballast ensures maximum energy efficiency and seamless installation in modern, slim lighting fixtures. The primary features of the ICN-2M32-MC include:

• Ultra-Compact MC Housing: The "Micro-Can" 9.5" x 1.08" x 1.05" design drastically reduces the physical footprint of the ballast, making it incredibly easy to install in tight ballast channels, modern low-profile troffers, and decorative architectural fixtures.
• IntelliVolt Technology: Automatically detects and adapts to any line voltage between 120V and 277V (50/60Hz), streamlining retrofits and eliminating the need to stock multiple voltage-specific ballasts.
• Instant Start Efficiency: Delivers maximum energy savings and immediate illumination upon powering. It provides a normal ballast factor (approx. 0.88) with Total Harmonic Distortion (THD) under 10% for clean, commercial-grade power utilization.

How to Verify Compatibility for Your Fixture

When evaluating the ICN-2M32-MC for a commercial lighting repair, assess the following criteria to ensure complete compatibility:

1. Lamp Type (T8): Confirm your fixture utilizes standard 32W T8 (F32T8) linear fluorescent tubes. It is also backward compatible with lower wattage F25T8 and F17T8 lamps.
2. Switching Cycles: Because this is an instant-start ballast, it is highly recommended for long-burn applications (e.g., offices, retail floors). If the space utilizes occupancy sensors with frequent on/off cycles, a programmed-start ballast is recommended instead to preserve lamp life.
3. Physical Dimensions: Verify that the MC-can metal housing (9.5" L x 1.08" W x 1.05" H) fits properly within your fixture. The MC is thinner and narrower than the standard SC-can.

Frequently Asked Questions

What lamps are compatible with the ICN-2M32-MC?

This ballast is optimized for standard 32W T8 (F32T8) linear lamps. However, it is fully capable of safely operating energy-saving 30W, 28W, and 25W T8 equivalents, as well as shorter F25T8 (3-foot) and F17T8 (2-foot) lamps.

Can this ballast safely run just a single lamp?

Yes, the ICN-2M32-MC uses a parallel wiring circuit and can safely operate either one or two lamps. Operating a single lamp will not damage the ballast; simply follow the 1-lamp wiring diagram printed on the ballast label and properly cap any unused leads.

What is the difference between the MC and SC housing?

The letters at the end of Philips Advance part numbers indicate the physical case size. The MC (Micro-Can) is roughly 1.08" wide and 1.05" tall, designed specifically for tight spaces. The SC (Small-Can) is slightly larger at 1.7" wide and 1.18" tall. Both operate the same electronically, but the MC fits in smaller fixtures.
