Description
Advance e-Vision Electronic Metal Halide (eHID) Ballast, 150W Max Power Output, ANSI M102 M142 C102 C142, Universal 120V-277V Input

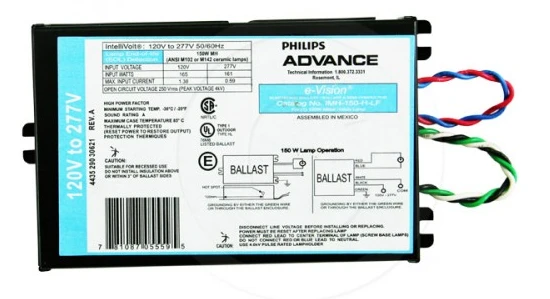

Advance e-Vision IMH-150-H-LF-M Electronic Metal Halide Ballast Guide
Quick Answer: The Advance e-Vision IMH-150-H-LF-M (Signify / Philips Advance) is a commercial-grade 150W electronic metal halide ballast engineered to operate a single 150-watt ceramic or quartz metal halide lamp (ANSI M102, M142, C102, C142) on universal 120–277V line voltage. Utilizing low-frequency square wave operation to eliminate acoustic resonance, lamp flicker, and arc instability, it features side-exit lead wires with mounting feet (LF configuration), an H-can metal enclosure, and an integrated thermal protection circuit (M designation) for architectural downlights, floodlights, and high-bay fixtures.
Advance e-Vision IMH-150-H-LF-M Overview & Key Features
The Advance e-Vision IMH-150-H-LF-M electronic HID ballast delivers precise wattage regulation, superior color stability, and high efficacy across commercial downlighting, retail display, and outdoor architectural fixtures:
- Low-Frequency Square Wave Drive: Eliminates acoustic resonance and arc distortion common to standard magnetic HID ballasts while extending lamp life and color maintenance.
- IntelliVolt Universal Input Voltage: Automatically operates across AC line voltages from 120V to 277V at 50/60 Hz without manual tap changes.
- Integrated Thermal Protection (-M Designation): Features internal thermal protection designed to safely shut down the ballast during thermal overload or severe end-of-life lamp rectifying conditions.
- Side Leads with Mounting Feet (LF): Equipped with side-exit lead wires and integral mounting feet for easy mechanical fastening to fixture wireways and junction enclosures.
- Superior Lamp Color Regulation: Regulates output power within tight tolerances across AC line fluctuations, maintaining uniform color temperature throughout the luminaire life.
- Silent Operation & High Power Quality: Class A sound-rated for quiet operation with a high power factor (>0.90) and Total Harmonic Distortion under 15%.
Advance e-Vision IMH-150-H-LF-M Technical Specifications
Core performance specifications and electrical ratings for the Advance e-Vision IMH-150-H-LF-M ballast:
| Specification Parameter | Rating / Value | Details & Performance Standards |
|---|---|---|
| Input Voltage | 120 – 277 VAC | IntelliVolt auto-sensing supply, 50/60 Hz |
| Lamp Wattage & Type | 150 Watts / Metal Halide | Ceramic Metal Halide (MasterColor CDM) & Quartz MH |
| ANSI Lamp Designation | M102, M142, C102, C142 | Standard 150W metal halide lamp ratings |
| Number of Lamps | 1 Lamp | Operates 1 single 150W MH lamp |
| Output Waveform | Low-Frequency Square Wave | Eliminates acoustic resonance (~140–170 Hz) |
| Power Factor / THD | > 0.90 PF / < 15% THD | High-power commercial electronic ballast rating |
| Case & Lead Configuration | LF (Side Leads with Feet) | H-can metal enclosure with mounting feet |
| Thermal Protection Feature | Yes (-M Suffix) | Internal thermal cutoff for overheat and fault protection |
| Maximum Case Temp (Tc) | 90°C (194°F) | Rated for enclosed architectural downlights |
| Sound Rating | Class A | Quiet electronic operation for noise-sensitive interiors |
| Compliance & Certifications | UL Listed, CSA Certified | RoHS compliant, thermally protected |
Installation & Wiring Guidelines
- Power Disconnect: Always turn off main AC power at the circuit breaker panel prior to servicing or installing the ballast.
- Wiring Schematic: Connect AC input leads (Black/Line, White/Neutral) to the 120–277V line. Connect output leads (Red/Lamp, Blue/Lamp) directly to the socket leads according to the ballast case label. Keep remote lead length within manufacturer guidelines (typically up to 5 feet).
- Thermal Contact & Equipment Grounding: Mount the metal H-can housing and integrated feet firmly against the grounded metal luminaire body to ensure proper thermal conduction and ground continuity.
Frequently Asked Questions
What does "IMH-150-H-LF-M" stand for in Advance e-Vision nomenclature?
"I" designates IntelliVolt (120–277V), "MH" indicates Metal Halide, "150" represents 150-watt lamp rating, "H" denotes the H-can case size, "LF" specifies Side Leads with Mounting Feet, and "-M" indicates integrated internal thermal protection.
What is the difference between an electronic HID ballast and a magnetic ballast?
The electronic e-Vision ballast uses a low-frequency square wave to drive the lamp, eliminating arc flicker and acoustic resonance while providing better color maintenance, up to 20% higher efficiency, and silent Class A operation compared to magnetic core-and-coil ballasts.
Can the IMH-150-H-LF-M operate both ceramic and quartz metal halide lamps?
Yes. It is rated to operate standard 150W quartz metal halide lamps (ANSI M102/M142) as well as ceramic metal halide lamps (ANSI C102/C142, such as Philips MasterColor CDM).
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No: |
BS-IMH-150-H-LF-M |
Manufacturer Part No.: |
IMH150HLF |
Manufacturer Material Code: |
913710295902 |
Brand: |
Advance |
Fixture Type: |
Electronic Metal Halide |
Input Voltage: |
120-277V (Universal) |
Watts: |
150W |
ANSI Code: |
M102, M142, C102, C142 |
Dimensions: |
6-19/64" (L) x 3-19/32" (W) x 1-1/2" (H) |
Product Data Sheet: |
See PDF Link Provided |
Features: |
Min. Starting Temp. -20°F; Side Exit Leads and Mounting Feet |
Warranty: |
Manufacturer's |
Case Size: |
10 |
