Description
ADVANCE Electronic Fluorescent Ballast, Universal 120-277V Input, 2 or 3 Lamp F32T8 F32T8/ES F25T8 F17T8 F40T8 Lamps, "HL" High Light Output (High Ballast Factor), Parallel Wiring, Instant Start

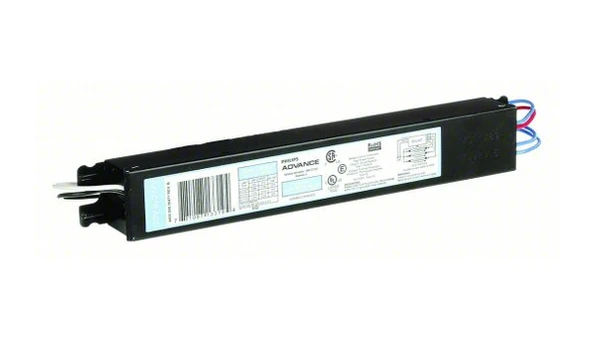

Advance Optanium IOP-3P32-HL-N Electronic Fluorescent Ballast Guide
Quick Answer: The Advance Optanium IOP-3P32-HL-N (Signify / Philips Advance) is a high-efficiency 3-lamp electronic fluorescent ballast engineered to operate 2 or 3 F32T8 lamps (as well as 25W, 28W, and 30W energy-saving T8s) across universal 120–277V line voltage. Featuring Instant Start parallel ignition, IntelliVolt auto-voltage sensing, High Light Output (HL - 1.18 to 1.20 Ballast Factor), and a compact N-Can housing, it provides maximum lumen output for high-ceiling commercial and industrial fixtures.
Advance Optanium IOP-3P32-HL-N Overview & Key Features
The Advance Optanium IOP-3P32-HL-N commercial ballast delivers high lumen performance and energy efficiency across elevated ceiling luminaires, industrial troffers, and long-burn commercial environments:
- High Light Output (HL Rating): Drives lamps at a high ballast factor (~1.18 to 1.20) to maximize light output per fixture in high-bay, retail, and commercial spaces.
- Instant Start Technology: Delivers fast, energy-efficient ignition without cathode preheating, maximizing system efficiency in long-burn commercial installations.
- Parallel Lamp Circuitry: Independent parallel wiring keeps the remaining lamps operating normally if one lamp fails.
- IntelliVolt Universal Voltage: Operates seamlessly across input line voltages from 120V to 277V AC at 50/60 Hz.
- N-Can Compact Housing: Low-profile metal enclosure designed to fit easily inside standard commercial fixture wireways.
- High Power Factor & Low THD: High power factor (>0.98) with Total Harmonic Distortion under 10% for optimal electrical quality.
Advance Optanium IOP-3P32-HL-N Technical Specifications
Core performance specifications and electrical ratings for the Advance Optanium IOP-3P32-HL-N ballast:
| Specification Parameter | Rating / Value | Details & Performance Standards |
|---|---|---|
| Input Voltage | 120 – 277 VAC | IntelliVolt auto-sensing supply, 50/60 Hz |
| Lamp Compatibility | F32T8 (32W), F28T8 (28W), F25T8 (25W), F30T8 | Standard and energy-saving linear T8 lamps |
| Number of Lamps | 2 or 3 Lamps | Operates 2 or 3 linear T8 fluorescent lamps |
| Starting Method | Instant Start | Energy-efficient parallel lamp circuit ignition |
| Ballast Factor | 1.18 – 1.20 (High Ballast Factor) | High-lumen output profile for elevated ceilings |
| Power Factor / THD | > 0.98 PF / < 10% THD | Commercial grade high power factor performance |
| Sound Rating | Class A | Quiet electronic operation for commercial environments |
| Compliance & Certifications | UL Listed, CSA Certified | RoHS compliant, Class P thermally protected |
Installation & Wiring Guidelines
- Power Disconnect: Always shut off main AC electrical power at the breaker panel before servicing or replacing the ballast.
- Instant Start Parallel Wiring: Connect the input line leads (Black/Line, White/Neutral) and output leads according to the wiring schematic on the ballast case label. Parallel wiring ensures remaining lamps remain lit if one lamp burns out.
- Enclosure Grounding: Securely mount the metal N-Can housing to the grounded metal luminaire body for reliable electrical ground and proper thermal dissipation.
Frequently Asked Questions
What does "IOP-3P32-HL-N" stand for in Advance's nomenclature?
"IOP" designates the Optanium High-Efficiency series, "3" represents maximum 3-lamp capacity, "P" stands for Premium efficiency, "32" indicates 32W T8 lamps, "HL" designates High Light output, and "N" denotes the N-Can enclosure style.
What is the difference between IOP-3P32-N and IOP-3P32-HL-N?
The standard IOP-3P32-N operates at a normal ballast factor (~0.88) for standard commercial lighting, whereas the IOP-3P32-HL-N features a High Ballast Factor (~1.18 to 1.20) to generate higher lumen output per fixture.
Can the Advance IOP-3P32-HL-N operate 2 lamps instead of 3?
Yes. The IOP-3P32-HL-N is UL listed and engineered to operate either 2 or 3 linear T8 fluorescent lamps safely.
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No: |
BSOS-IOP-3P32-HL-N |
Mfr Part #: |
IOP3P32LWN |
Manufacturer Material Code: |
913701255101, 913701255102 |
Brand: |
Advance Optanium |
Fixture Type: |
Electronic Fluorescent |
Input Voltage: |
120-277V (Universal) |
Start Method: |
Instant |
Lamp: |
(2/3) F32T8, (2/3) F32T8/ES, (2/3) F25T8, (2/3) F17T8, (2) F40T8 |
Dimensions: |
9.50" L x 1.3" W x 1.0" H, MC 8.9" |
Product Data Sheet: |
See Link Provided |
Features: |
"HL" High Light Output, High Ballast Factor |
Number Of Lamps: |
2, 3 |
Operates: |
F32T8, F32T8ES, F25T8, F17T8, F40T8 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
