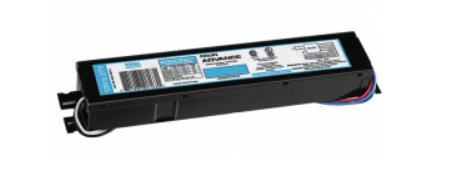

Advance Optanium IOP-4PSP32-SC Electronic Fluorescent Ballast Guide
Quick Answer: The Advance Optanium IOP-4PSP32-SC (Signify / Philips Advance) is a high-efficiency 4-lamp electronic fluorescent ballast designed to operate 3 or 4 F32T8 lamps (as well as 25W, 28W, and 30W energy-saving T8 lamps) on universal 120–277V line voltage. Featuring Programmed Start technology, IntelliVolt auto-voltage sensing, and a Small Can (SC) enclosure, it optimizes lamp life in high-frequency switching environments.
Advance Optanium IOP-4PSP32-SC Overview & Key Features
The Advance Optanium IOP-4PSP32-SC commercial ballast delivers energy-efficient performance and max cathode heating across commercial 2x4 troffers and linear fixtures:
- Programmed Start Technology: Gently preheats lamp filaments prior to ignition, extending lamp life in applications with frequent occupancy sensor switching.
- IntelliVolt Universal Voltage: Operates seamlessly across input voltages from 120V to 277V AC at 50/60 Hz.
- Small Can (SC) Compact Enclosure: Designed with a low-profile housing for flexible installation inside tight light fixture wiring channels.
- High Energy Efficiency & Low THD: High power factor rating (> 0.98) with Total Harmonic Distortion under 10% for optimal power quality.
Advance Optanium IOP-4PSP32-SC Technical Specifications
Core performance specifications and electrical ratings for the Advance Optanium IOP-4PSP32-SC ballast:
| Specification Parameter | Rating / Value | Details & Performance Standards |
|---|---|---|
| Input Voltage | 120 – 277 VAC | IntelliVolt auto-sensing supply, 50/60 Hz |
| Lamp Compatibility | F32T8 (32W), F28T8 (28W), F25T8 (25W), F30T8 | Standard and energy-saving linear T8 lamps |
| Number of Lamps | 3 or 4 Lamps | Operates 3 or 4 linear T8 fluorescent lamps |
| Starting Method | Programmed Start | Soft-start preheat ignition for sensor applications |
| Ballast Factor | 0.88 (Normal Ballast Factor) | Standard commercial light output profile |
| Power Factor / THD | > 0.98 PF / < 10% THD | Commercial grade high power factor design |
| Sound Rating | Class A | Quiet electronic performance for office spaces |
| Compliance & Certifications | UL Listed, CSA Certified | RoHS compliant, Class P thermally protected |
Installation & Wiring Guidelines
- Power Disconnect: Always turn off main AC power at the circuit breaker before removing or servicing the ballast.
- Wiring Configuration: Follow the wiring diagram printed on the ballast housing label. Programmed start wiring requires separate lead runs to each lamp socket.
- Grounding & Mounting: Mount the metal Small Can case securely to the grounded fixture housing to ensure proper electrical ground and thermal dissipation.
Frequently Asked Questions
What does "IOP-4PSP32-SC" stand for?
"IOP" indicates Optanium High-Efficiency series, "4" represents max 4 lamps, "PS" stands for Programmed Start, "P" signifies Premium efficiency, "32" indicates standard 32W T8 lamps, and "SC" designates the Small Can enclosure size.
Can the Advance IOP-4PSP32-SC operate 3 lamps instead of 4?
Yes. The IOP-4PSP32-SC is UL listed to operate either 3 or 4 F32T8 fluorescent lamps safely.
Can this ballast be bypassed for Type B LED T8 tubes?
Yes. When retrofitting fixtures to Type B direct-wire LED T8 lamps, the ballast is completely disconnected and removed from the electrical circuit.
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No: |
BS2-IOP-4PSP32-SC |
Mfr Part #: |
IOP4PSP32SC |
Manufacturer Material Code: |
913710894601, 913710894602 |
Brand: |
Advance Optanium |
Fixture Type: |
Electronic Fluorescent |
Input Voltage: |
120-277V (Universal) |
Lamp: |
(4/3) F32T8, (4/3) F25T8, (4/3) F17T8 Also equivalent U-shaped. |
Dimensions: |
9.50" L x 1.7" W x 1.18 " H, 8.9" MC |
Product Data Sheet: |
See PDF Link Provided |
Features: |
High-efficiency |
Start Method: |
Program |
Alternative Keywords: |
Replaces IOP-4PSP32-N |
Warranty: |
Manufacturer's |
Case Size: |
10 |
Number Of Lamps: |
3, 4 |
Operates: |
F17T8, F25T8, F32T8, F32T8ES |
